Moving object nodes and stitches usign ALT+Cursor Keys

When editing objects, the position of the selected node or nodes can be adjusted using ALT + cursor keys, for improved accuracy. It also works during stitch edition.

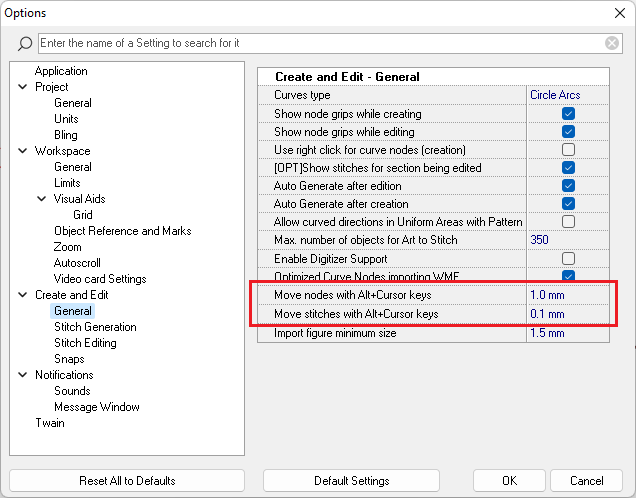

Version 23.13 includes separated settings to define the distance to be moved for object nodes and stitches. The settings are available at the Option box, Create and Edit > General

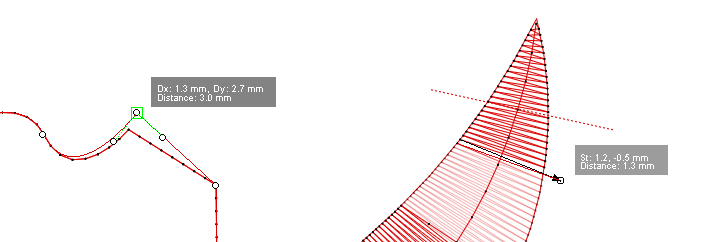

New tooltips while creating and editing nodes and stitches.

New auxiliary tooltips showing distance appear when inserting or moving nodes and stitches.

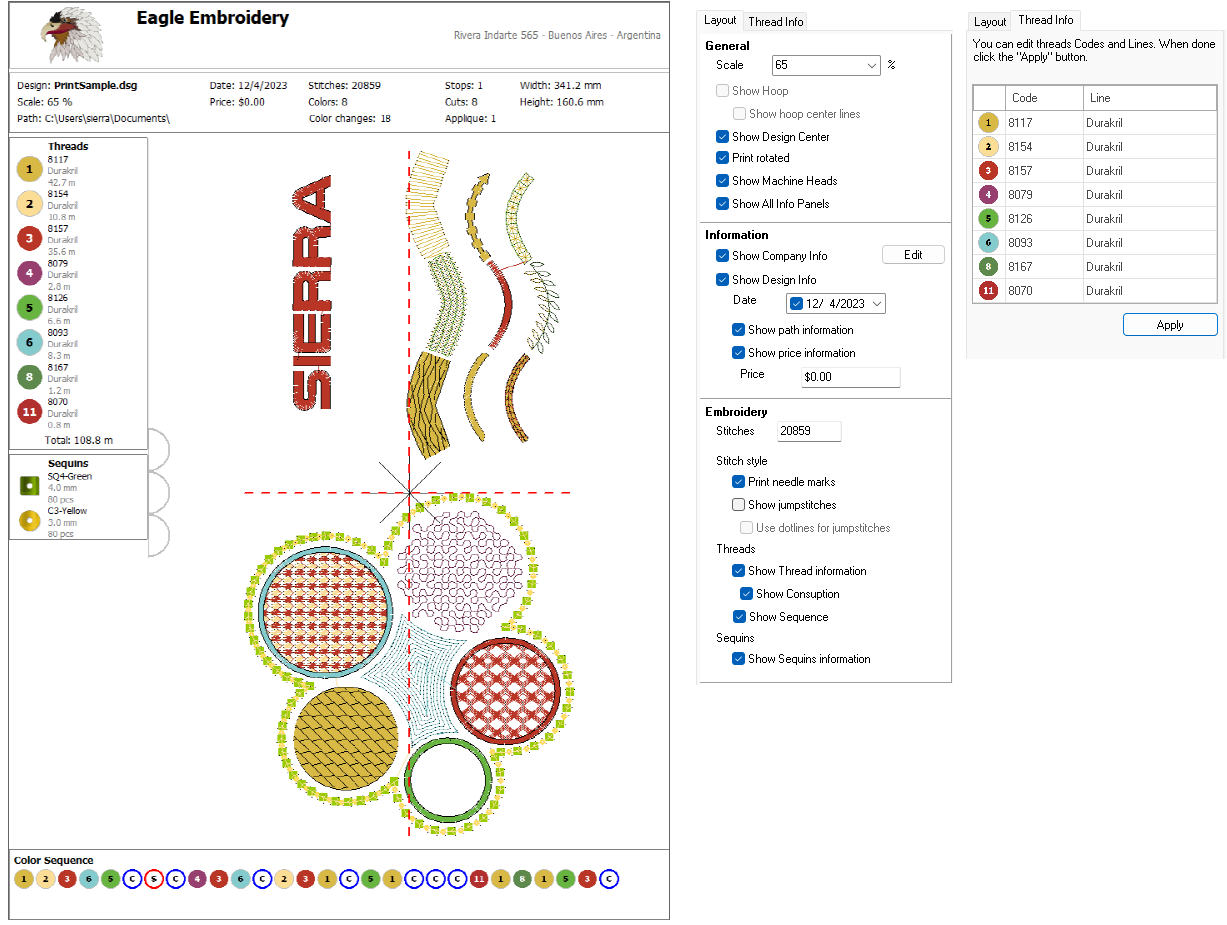

Improved Standard Print

New controls to hide/show the different information panels (threads, sequins, color sequence...)

New controls to hide/show the machine head symbol, the price and the design file path.

Stops and thread trims appear in the color sequence and the count of them appears inside the information panel.

Thread information can be edited from the Thread info tab

Contrast color

Contrast color now applies to the frame while moving objects and to the selection box used for zoom and for object selection.

•Fixed problem in stitch editing, when a cursor key is left pressed for a long time to navigate the stitches.

•Setting "Hide stitches for objects under edition" was showing the stitches instead of hidden them.

•Fixed some translation issues in Machine Connection Manager.

•For Texture fill style, the Object Inspector was showing "Custom properties" enabled by default.

•Fixes to the shortcut items displayed within the Customize Shortcuts box.

•Catalog: When it was opened in Native Designs (dsg) mode, it was not possible to change the folder.

•Fixed the behavior of the Split command, which was being disabled unexpectedly in some conditions.

•Document map: fixed the scroll issue when several objects were selected.

•Fixed an issue with the Size and Position controls on the main toolbar that caused it to appear blank when creating a new design.

•Object inspector: Fixed the error that occurred when displaying the properties of a group of objects of a different type, where the filter by object type was not applied correctly.

•Adjusted the Object Environment default offset value when the system is set to use English units

•Fixed the error that appeared when moving object nodes right after using Add Node or Insert Node with sequence view open.

•It was repaired the issue when performing Drag & Drop within the Sequence View with package objects.

•When converting objects into figures, the system always assigned the first color in the palette. Now it is assigned the color of the object.

•The Explode function was incorrectly enabled for monogram objects, causing an error.

•Fixed the issue with the Object Inspector for Text objects when the Fill tab was in a mode other than Beginner

•It was repaired the function Separate Outline for outlines with Multi Programmable Stitches

•Added the Feader Location property that was missed for Spiral Sequin and Multi Sequin fill styles

•Fixed the issue with Repetition function for objects with Photo fill style

•Solved the problem with Text objects regarding the snap to reference lines

•Minor updates in some sequin fixing styles.

•Several fixes in Juki machine format.

•Workspace feedback (what you see is what you get) while creating figure texts from the Smart Design

•Fixed the error that occasionally appeared when switching between a document with figures-only objects and a document with embroidery objects.

•Information Panel: Solved the issue with some collections and categories that were not being saved.
