Column + Ray Bling Fill

Column Single Ray HF 0

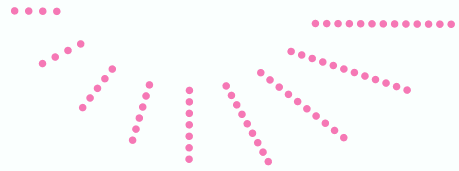

This fill style places the bling beads (same color, size or shape) on a closed area, as a set of paths (rays) with regular fill that follow the directions of the pair of nodes (columns).
Column Single Ray HF 1
Column Single Ray HF 2
Column Single Ray HF 3

How to create an object of this type?

➢Select the tool Create a Column with Ray Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Column" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.
Column_Single_Ray_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Single Column with Ray Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Single Column with Ray Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Properties



OI Column_RayFill



HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

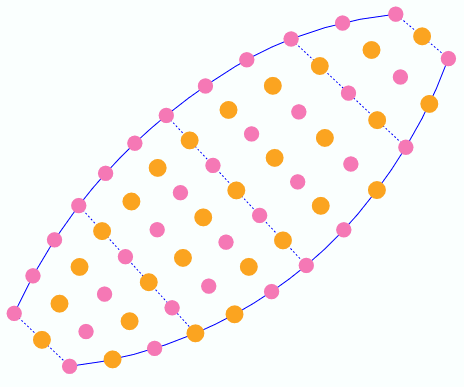

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.



HF summary 172

Specify the number of rays of the object.

Available options are:

oRays separation: distance between rays (mm)

oRays count: number of rays in the column object

Specify the number of rays through the Ray Separation:



Ray Separation: 5.0 mm



Ray Separation: 10.0 mm


HF summary 178


HF summary 179

Specify the number of rays through the Ray Count:



Ray Count: 9



Ray Count: 14


HF summary 180


HF summary 181

It defines the number of rows of the object.



HF summary 173

Define where the rays must be placed.

Available options are:

oReferences: Places rays where the column nodes are located.

oReferences+Interior: Places rays where the column nodes are located and also between consecutive node pairs.





Rays on References



Rays on References + Interior


HF summary 182


HF summary 183



It defines where to insert rays.



HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.



HF summary 3

Variable distance between 2 neighbor bling beads.

This property changes the beads separation at the end of the path. Note: If enabled, the "Separation at end" property is displayed.



Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187

It enables or disables a variable beads spacing in the rays.



HF summary 42

Set the distance from the object borderline to the bling fill style.





Margin from Border: 0.0 mm



Margin from Border: 2.0 mm


HF summary 44


HF summary 45





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 76


HF summary 77





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 98


HF summary 99





Margin from Border: 0.0 mm



Margin from Border: 5.0 mm


HF summary 119


HF summary 120



It sets a minimum distance from the beads to the object border.



HF summary 175

Randomize the ends of the beads rays (side and amplitude).

Available options are:

oSide A

oSide B

oBoth Sides





Side A

Side B

Both Sides


HF summary 190
HF summary 191
HF summary 192





Random Amplitude: 20%

Random Amplitude: 40%

Random Amplitude: 60%


HF summary 193
HF summary 194
HF summary 195



It applies a random effect to the ends of the rays.



HF summary 5

Bling beads can be rotated an angle (from its center). Certainly, it makes sense for non-round beads only.

Some object types (path types) allow to automatically rotate the bead according to the tangent angle of the path at the place of the bead. For this case the available options are:

oPerpendicular: Beads are rotated following a variable direction perpendicular to the path, plus the specified angle value.

oTangent: Beads are rotated following a variable direction tangent to the path, plus the specified angle value.

oFixed (default option): Beads are placed at a the fixed angle specified by the angle value.





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 24
HF summary 23
HF summary 22





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 78
HF summary 79
HF summary 80





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 102
HF summary 101
HF summary 100





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 123
HF summary 122
HF summary 121

This property is an optional feature.

It allows to rotate bling beads.



Read also

•Object COLUMN



This feature is included in the Advanced Bling Fill Styles Pack
