Area + Spectacular Bling Fill

Area Single Spectacular HF 0

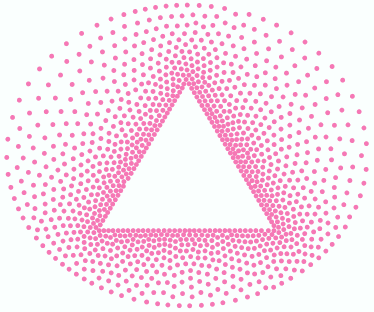

This fill style places the bling beads (same color, size or shape) outside a closed area, where beads spacing increases from the center to the external shape.
Area Single Spectacular HF 1
Area Single Spectacular HF 2
Area Single Spectacular HF 3

How to create an object of this type?

➢Select the tool Create an Area with Spectacular Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Outer Area" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Single_Spectacular_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Single Area with Spectacular Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Single Area with Spectacular Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Properties



OI Area_SpectacularFill





HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.



HF summary 144

This is the shape of the outer limit of this fill style. The shape size is controlled graphically.

Available shapes are:

oCurve: Creates a shape effect similar to the object shape.

oCircle: Creates a circular or elliptical shape.

oRectangle: Creates a rectangular or square shape.

oRound Rectangle: Creates a round-rectangular or square shape.





Curve



Circle


HF summary 159


HF summary 160



Rectangule



Round Rectangle


HF summary 161


HF summary 162



It defines the shape of the limits of the beads surrounding the object.



HF summary 145

Beads spacing at the center of the shape.





Spacing at Center: 0.4 mm



Spacing at Center: 1.5 mm


HF summary 168


HF summary 169



It controls the distance between beads at the center of the object.



HF summary 146

Beads spacing at the outline of the shape.





Spacing at Outline: 10.0 mm



Spacing at Outline: 20.0 mm


HF summary 170


HF summary 171



It controls the distance between beads at the outline shape.



HF summary 147

Point of the grading line where the beads separation is the average value between the spacing at the initial and the ending point.

This point is represented as a value in the range 0.1 to 0.9, where 0.1 is located near Starting point and 0.9 is located near End point.





Half Grading Point at: 0.3

Half Grading Point at: 0.5

Half Grading Point at: 0.7


HF summary 152
HF summary 153
HF summary 154





Half Grading Point at: 0.3

Half Grading Point at: 0.5

Half Grading Point at: 0.7


HF summary 165
HF summary 166
HF summary 167



It defines a point in the grading line where beads spacing is the average between the value at the start and end point.



Read also

•Object AREA



This feature is included in the Advanced Bling Fill Styles Pack
