Area + Grading Bling Fill

Area Single Grading HF 0

This fill style distributes the bling beads (same color, size or shape) on a closed area according to the defined variable spacing (spacing between beads gradually changes along a specified direction).
Area Single Grading HF 1
Area Single Grading HF 2
Area Single Grading HF 3

How to create an object of this type?

➢Select the tool Create an Area with Grading Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Inner Area" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Single_Grading_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Single Area with Grading Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Single Area with Grading Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Properties



OI Area_GradingFill





HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.



HF summary 144

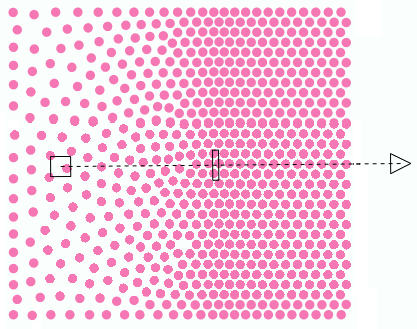

Grading Fill style includes 2 options:

oLinear Grading: Produces a linear beads density (or spacing) variation following the grading line.

oRadial Grading: Produces a radial beads density (or spacing) variation (the grading line is the radio).





Linear Grading



Radial Grading


HF summary 150


HF summary 151



It sets the grading mode: linear or radial.



HF summary 145

Beads separation at the initial point of the grading line.





Spacing at Start Point: 1.5 mm



Spacing at Start Point: 3.0 mm


HF summary 155


HF summary 156



It controls the spacing between beads at the start point of the grading line.



HF summary 146

Beads separation at the ending point of the grading line.





Spacing at End Point: 0.5 mm



Spacing at End Point: 1.0 mm


HF summary 157


HF summary 158



It controls the spacing between beads at the end point of the grading line.



HF summary 147

Point of the grading line where the beads separation is the average value between the spacing at the initial and the ending point.

This point is represented as a value in the range 0.1 to 0.9, where 0.1 is located near Starting point and 0.9 is located near End point.





Half Grading Point at: 0.3

Half Grading Point at: 0.5

Half Grading Point at: 0.7


HF summary 152
HF summary 153
HF summary 154





Half Grading Point at: 0.3

Half Grading Point at: 0.5

Half Grading Point at: 0.7


HF summary 165
HF summary 166
HF summary 167



It defines a point in the grading line where beads spacing is the average between the value at the start and end point.
