Area + Uniform Bling Fill

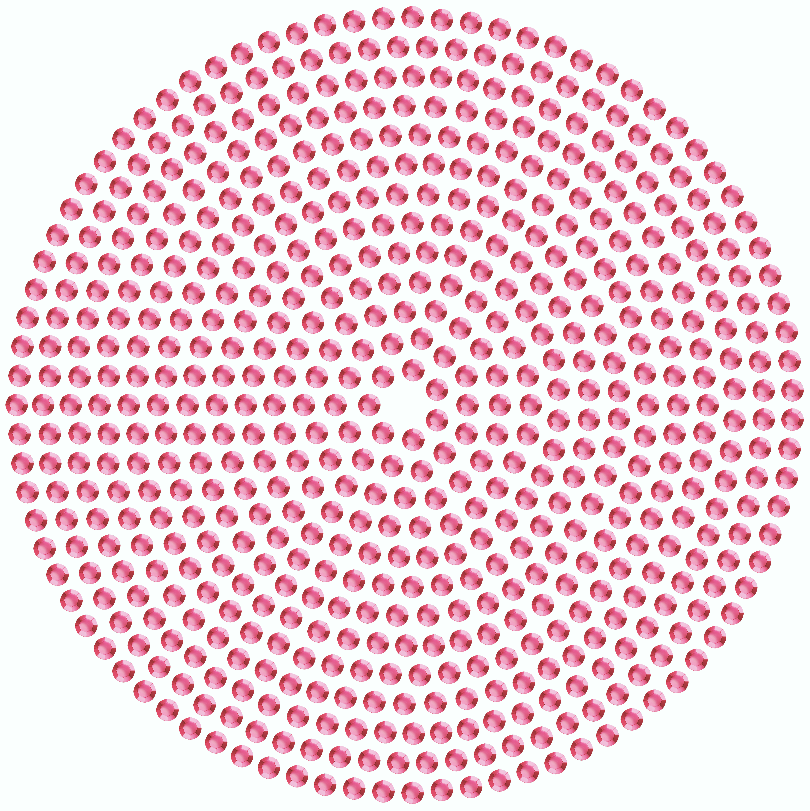

Area Single Uniform HF 0

This fill style places bling beads (same color, size or shape) on an closed area, covering it uniformly.
Area Single Uniform HF 1
Area Single Uniform HF 2
Area Single Uniform HF 3

How to create an object of this type?

➢Select the tool Create an Area with Uniform Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Single-Bling" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Single_Uniform_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Single Area with Uniform Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Single Area with Uniform Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.



hmtoggle_arrow1Main Properties



OI Area_UniformFill



Bling Type

HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.

Beads Separation

HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.

Beads Count

HF summary 2

Specify the aproximate number of bling beads for the object.

Enabling this property, the Separation property is disabled.





Beads Count: 6

Beads Count: 10

Beads Count: 17


HF summary 11
HF summary 12
HF summary 13





Beads Count: 33

Beads Count: 52

Beads Count: 76


HF summary 36
HF summary 37
HF summary 38



It sets a specific number of beads for the object.

Uniform Beads Layout

HF summary 39

There are 2 different uniform fill styles:

oRadial Fill:  A special algorithm that starts from an initial placement and then moves the beads to set them equidistant. It produces a placement that slightly follows the shape of the object.

oHexagon Fill: Produces a more uniform, shape independent placement.





Radial Fill



Hexagon Fill


HF summary 40 J


HF summary 41 J

It specifies the type of uniform beads layout: Radial or Hexagonal fill.

Margin from Border

HF summary 42

Set the distance from the object borderline to the bling fill style.





Margin from Border: 0.0 mm



Margin from Border: 2.0 mm


HF summary 44


HF summary 45





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 76


HF summary 77





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 98


HF summary 99





Margin from Border: 0.0 mm



Margin from Border: 5.0 mm


HF summary 119


HF summary 120



It sets a minimum distance from the beads to the object border.

Smart Fit

HF summary 43

Smart fitting mode, slightly moves the beads positions to better follow the object shape.





Disable Smart Fit



Enable Smart Fit


HF summary 47


HF summary 46



It enables an alternative fitting mode to place beads in the area.
