Area + Flat Bling Fill

<< Click to Display Table of Contents >>

Navigation:  Bling on the Embroidery Software > Bling Digitizing > Bling Fill STYLES > Standard Bling Fill Styles Pack >

Area + Flat Bling Fill

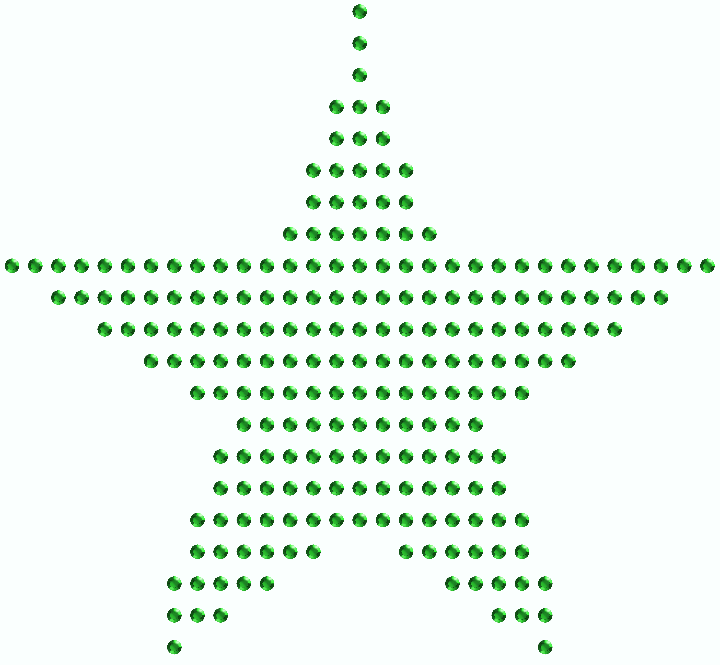

Area Single Flat HF 0

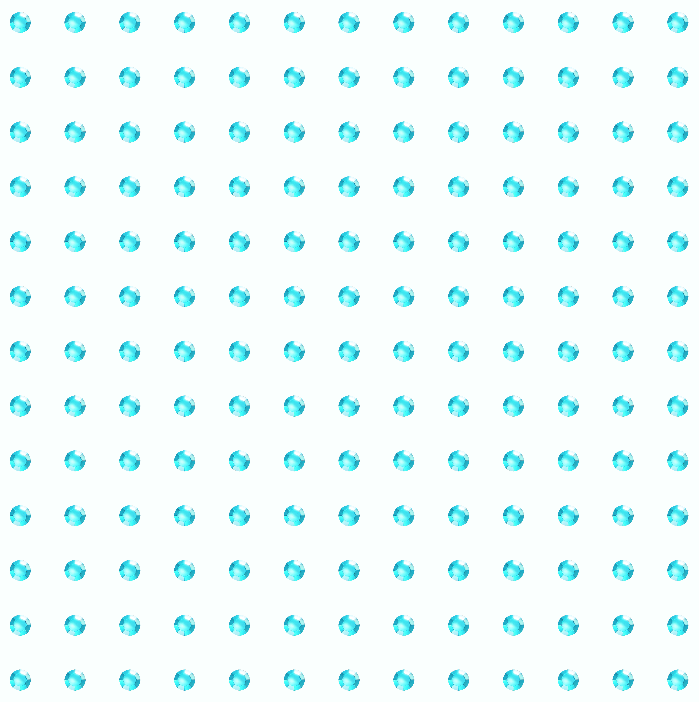

This fill style distributes the bling beads (same color, size or shape) as a grid (columns, rows) on an closed area.
Area Single Flat HF 1
Area Single Flat HF 2
Area Single Flat HF 3

How to create an object of this type?

➢Select the tool Create an Area with Flat Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Single-Bling" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Single_Flat_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Single Area with Flat Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Single Area with Flat Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.



hmtoggle_arrow1Main Properties



OI Area_FlatFill



Bling Type

HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.

Beads Separation

HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.

Rows Spacing

HF summary 50

Distance between the beads rows.





Row Spacing: 1.0 mm



Row Spacing: 2.5 mm


HF summary 56


HF summary 57





Row Spacing: 1.5 mm



Row Spacing: 3.0 mm


HF summary 74


HF summary 75



It defines the distance between bead arrays or rows.

Beads Offset

HF summary 51

Displacement of the beads position in consecutive rows of beads.

This property is used in flat fill style (that produces vertically and horizontally aligned beads). Mostly used values are: 0%, 25%, 33%, 50%.





Beads Offset: 0%



Beads Object: 50%


HF summary 60


HF summary 61



It sets a displacement of the beads in a row (array) respect to the previous row.

Border Clipping Mode

HF summary 52

Select how the beads are placed at the object borderline.

oInside: Forces to remove the beads that are not completely inside the area.

oOutside: Allows beads that are placed crossing the object borderline.





Border Mode: Outside (Include)



Border Mode: Inside (Exclude)


HF summary 62


HF summary 63



It specifies how to place the beads at the border.

Bead Position Tolerance

HF summary 53

Usually, if columns and rows spacing values are strictly considered, some beads won't fit correctly and they won't be placed. But sometimes the placement would look better if some beads are allowed. The Tolerance property controls how strict the program should be. A value of 0% (zero) means no tolerance at all, and larger values makes the rule more flexible, allowing some beads to be included.





Tolerance: 10%



Tolerance: 80%


HF summary 64


HF summary 65



It specifies a tolerance to adjust the beads position.

Beads Angle Mode

HF summary 5

Bling beads can be rotated an angle (from its center). Certainly, it makes sense for non-round beads only.

Some object types (path types) allow to automatically rotate the bead according to the tangent angle of the path at the place of the bead. For this case the available options are:

oPerpendicular: Beads are rotated following a variable direction perpendicular to the path, plus the specified angle value.

oTangent: Beads are rotated following a variable direction tangent to the path, plus the specified angle value.

oFixed (default option): Beads are placed at a the fixed angle specified by the angle value.





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 24
HF summary 23
HF summary 22





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 78
HF summary 79
HF summary 80





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 102
HF summary 101
HF summary 100





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 123
HF summary 122
HF summary 121

This property is an optional feature.



It allows to rotate bling beads.
