Free-Hand Digitizing

<< Click to Display Table of Contents >>

Navigation:  Bling on the Embroidery Software > Bling Digitizing > Digitizing METHODS >

Free-Hand Digitizing

Bling objects can be created with simple free-hand tracing. This is the ideal digitizing method when you need to create irregular (hand-made) shapes.



How to create bling objects through free hand digitizing?



Click on CREATE OBJECT, on the MAIN bar and select the Embroidery Object Type you want to create. You can select the object type from the tooltab BLING or through the drop-down menu on the CREATE OBJECT arrow.

The context tooltab BODY with the properties of the selected object type is displayed.





HF_Free-Hand_Digitizing_Step_1

Click on FREE HAND, on the tooltab BODY.

HF_Free-Hand_Digitizing_Step_1b

Press the mouse left button on the workspace and drag the mouse according to the shape of the object you want to create.

You can create open shapes or closed shapes.

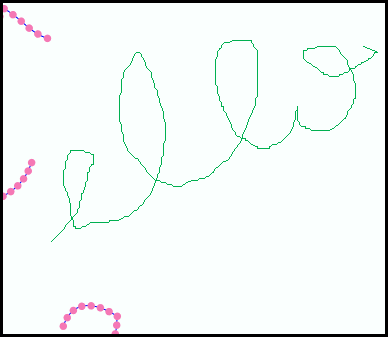

HF_Free-Hand_Digitizing_Step_2

Release the mouse to create the new object.

The software will vectorize the hand-trace to reduce the number of nodes of the new object.

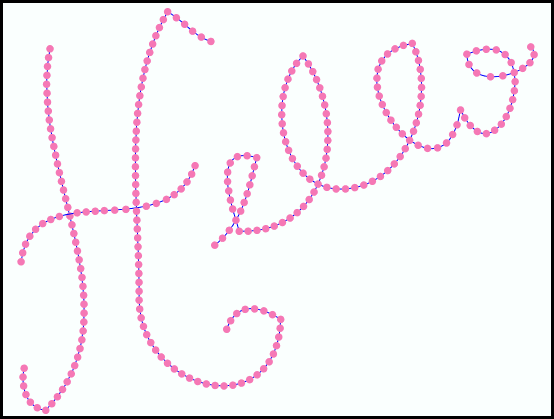

The new object has been created!

HF_Free-Hand_Digitizing_Step_3



Hand-made (irregular) shapes through hand-free digitizing



You can create the objects as explained, using the PATH object type or AREA object type with almost any fill style.

See the following samples.

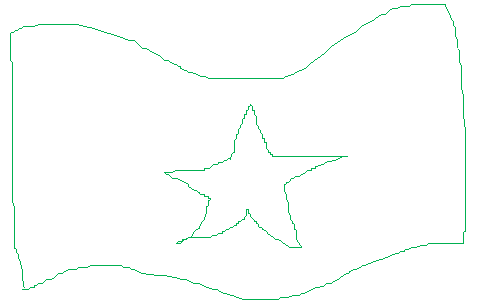

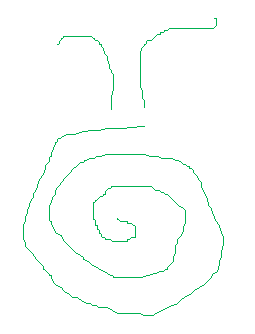

HF_Free Hand_1 HF_Free_Hand_3

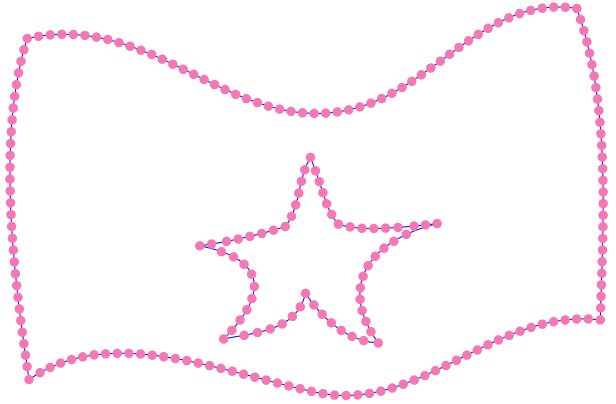

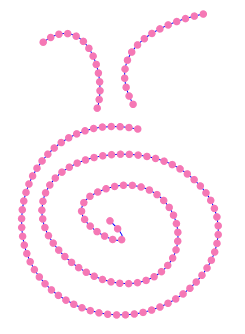

HF_Free_Hand_2 HF_Free_Hand_4



Regular shapes through hand-free digitizing



If you create the objects as explained, but the shape you draw approximates to a regular shape (square, rectangle, circle, ellipse, triangle, etc) the application will produce the regular shape.

See the following samples.

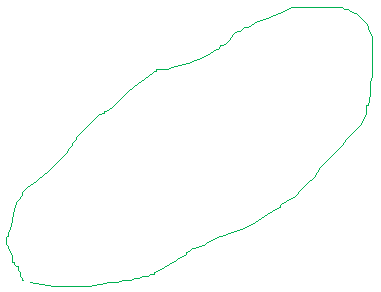

HF_Free_Hand_5

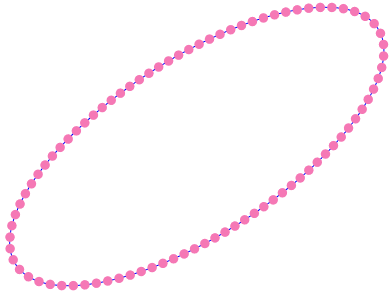

HF_Free Hand_6_path

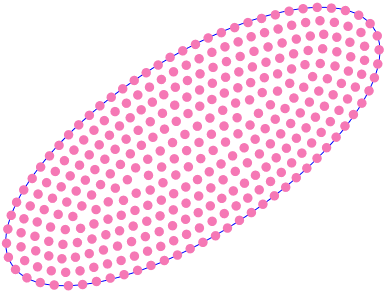

HF_Free Hand_6
