There are two options for printing your embroidery designs

Print Design (standard)

Print Formats (advanced).



You can execute the PRINT function from the tooltab HOME > Output group.



You can also execute the Print function from the menu FILE > PRINT.

Misc_Print_0

Print Design (standard)

This is a general design printout, using a simple layout, with a quick setup and basic printing parameters.



Misc Print 1

You can edit the print settings:

Print Scale (100% is a 1:1 printout)

Print Needle Marks (dots on stitch ends)

Print Jump Stitches (male jumps visible)

Dot lines in Jump Stitch (instead of a solid line)

Print Rotated (landscape print)

Print Design Information (show design info)

Print Page Border (print a border)

Use the Preview button to check how the printout will look before printing. Use the controls at the lower right corner to control page margins and set printer preferences.

Print Formats (advanced)

Several customizable design printouts, including a wide range of options, for different purposes.

When you execute the PRINT FORMAT function, the Print Format assistant is open. This tool offers all the options to select any of the available formats and to select the information to print.



Misc Print 3

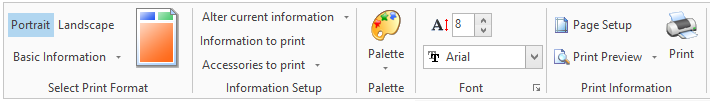

Toolbar: Select Print Format group

Misc Print 4

Template

Select any of the available the print format templates:

Basic Information

Technical Information

Color Sequence

Simulation Sheet

Complete Technical Information

Color Variations

Orientation

You can also select the orientation (portrait or landscape).

Template: Basic Information

This template includes:

The drawing of the embroidery design

General information of the design

File information

Bar code

1-Basic_land

Template: Technical Information

This template includes:

The drawing of the embroidery design.

General information of the design.

File information.

Thread information.

Sequence of commands.

Bar code.

6-Tech_info_land

Template: Color Sequence

This template includes:

The drawings of the embroidery design, separated by colors.

General information of the design.

Thread information.

Bar code.

2-Color_Sequence_land

Template: Simulation sheet

This template includes:

The simulated drawing of the embroidery design.

General information of the design.

Thread information.

Bar code.

5-Simulation_land

Template: Color Variations

This template includes:

The drawing of the embroidery design.

General information of the design.

Thread information.

Bar code.

3-Color_Variations_land

Toolbar: Information Setup group

Misc Print 5

Alter Current Information

Allows to change the information to print. Options are:

General Information:

It displays information related to the design to print. It allows to change the content of all the items related to the file information. These changes can be only made for the printing, not in the design.

Machine Commands:

It displays the commands (controls) of the design. You can also change them. For example, you can re-establish the original commands, in cases that they have been modified during the conversion to the current code.

Thread Consume:

It displays the following options (its also allows to change them):

The needle sequence.

Number of stitches per color.

Thread length per color.

The color assigned to each needle (description or code of any color chart).

Stitch Statistics:

It displays the following options (its also allows to change them, but it is not recommended):

The needle sequence.

Number of stitches per color.

Thread length per color.

Number of stitches in every stitch length range.

Information to Print

You can define the information to print (design information, file information, functions, threads and statistics), and set the print information order as well. By pressing the left mouse button on the verification boxes, you can enable or disable the printing of each of the items. These changes can be applied to all the printing styles.

There are five tabs: Statistics, Design, File Info, Functions, and Thread. Each of these tabs contain the information that will be grouped in the printout and organized in tables.

To change the information order presented in the printing, press and hold the mouse left button on any of the tabs or items, and then drag it to the new position.

Accessories to print

Select the option "Rectangle on Outline" to print a border around the layout.

Select the option "Bar Code"  to include a barcode printing of the design file name.

Toolbar: Palette and Font group

Misc Print 6

Palette

Open the Color box,  where you can assign different thread colors to the design.

Font

Change the Font type, Style and Size used in the printout to present the information.

Press on the little arrow at the bottom right to open the Font box and make the desired changes.

Toolbar: Print Information group

Misc Print 7

Page Setup

Configure page size, source, orientation, margins, etc.

Print Preview

Display a Print Preview Form in an independent window.

Print

Print the design.
