Object PATH

What is a Path object?

HF_Digitizing_Path

Path is an object type made of a continuous sequence of nodes that make up a poly-line.

The properties of the nodes define if the segments between the nodes are straight lines or curves, and if the node shows a continuity or a discontinuity (also known as corner) of the curves (*).

There are open and closed paths. There is a closed path if the last node matches with the first node of the path, otherwise it is an open path.

Even when a closed path forms an area, we refer this geometry as a path when that path is the object to fill (instead of the area).



icon-info-1

(*) read about how to digitize and node properties in Classic Digitizing.



Samples of Path Objects with several Bling Fill styles.

HF_Sample_Path_1

HF_Sample_Path_2

HF_Sample_Path_3



Elements of the Path Object

HF_Digitizing_Sections_11

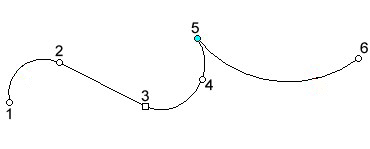

Sequence of nodes (1 to 6)



Nodes:

They are points of the geometry of the object (shape), which include properties to define the segment (line or curve) between 2 consecutive nodes.



How to create a Path Object?

Click on CREATE OBJECT, on the MAIN bar and select the PATH Object + Regular Bling fill style (or any other bling fill style).

You can select the object type from the tooltab BLING or through the drop-down menu on the CREATE OBJECT arrow.

Click on MANUAL digitizing.

Insert each node of the path in the workspace with a click (read about node properties to create straight or curve line segments).

Click on ENTER or click on Accept/OK from the context menu to confirm the object.

HF_Digitizing_Path



HF_geometric-elements-1



HF_Digitizing_Sections_11



Available Bling Fill Styles for Path Object



Path + Regular Bling Fill

Path + Regular Multi-Bling Fill
