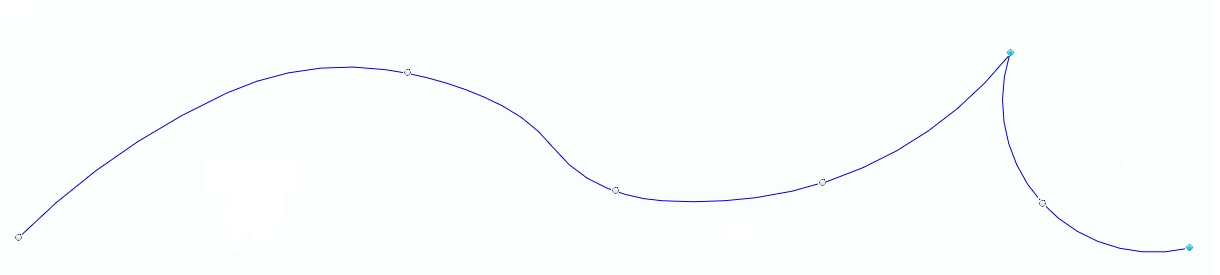

This fill style places different types of bling beads (rhinestones, sequins, spangles) on a path object defined by straight or curve segments. Paths can be open objects or closed objects. This fill style is also known as multicolor path.
|
How to create an object of this type?
➢Select the tool Create a Path with Regular Multi-Bling Fill through any available way:
oOpen the Smart Design window and select the corresponding tool.
oClick on the arrow below the "Create" button and select the corresponding tool.
oOpen the Bling ToolsTab, click on the arrow below the "Path" button and select the corresponding tool.

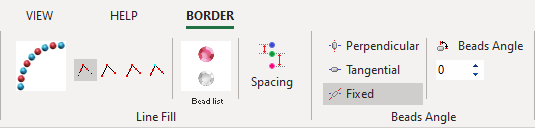

A context ToolsTab containing the most frequently used properties of this fill style will open.
➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).
➢Digitize the object (through any digitizing method) by inserting the required elements of this object type. |
|
➢Confirm and GENERATE bling beads.
➢If editing is required, just select the Select Object tool on the Main Toolbar. |
|
|
About Fill Style Properties

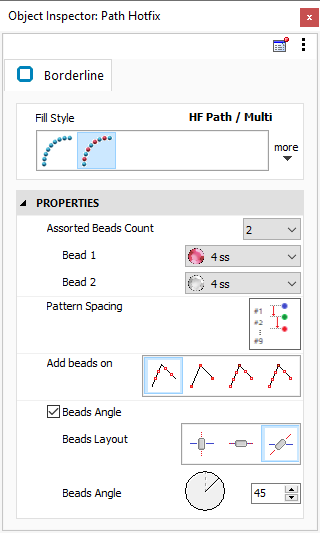

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).
•The most commonly used properties are also available on the corresponding tooltab.
•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected. |
|
|
|
Also select the bling bead types to use on this object.
Press the left mouse button on this option to unfolds the current bling palette.
|
|

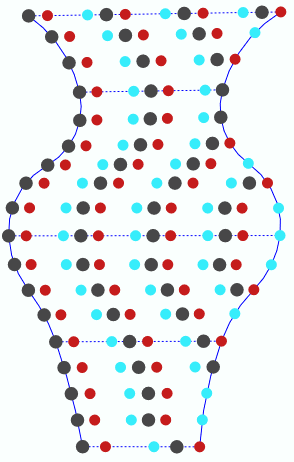

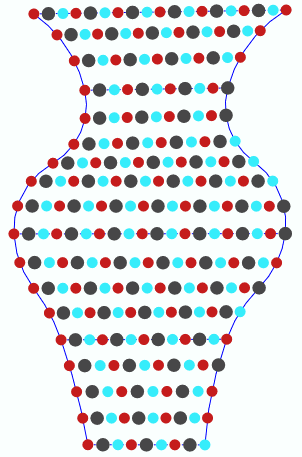

Beads types: 2
|
|
Beads types: 4
|
|
|
|
|
|
Beads types: 2
|
|
Beads types: 4
|
|
|
|
|
|
Beads types: 2
|
|
Beads types: 4
|
|
|
|
|
|
Beads types: 2
|
|
Beads types: 5
|
|
|
|
|
|
It specifies the types of bling beads used in the object.
|

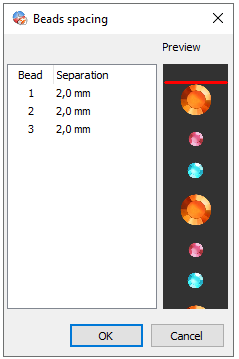

Define a sequence of bling bead types (pattern) and the spacing when placed on the paths.
Clicking on the option unfolds the bead type list of the current pattern.
|
|

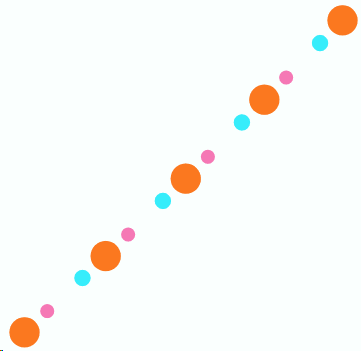

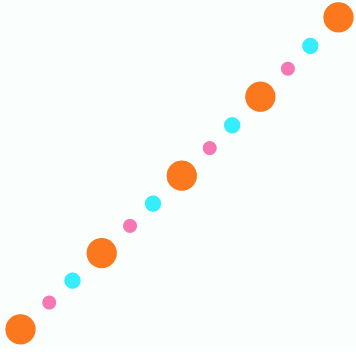

Separation: 2.0 mm (all)
|
|
Separation 1: 1mm, Separation 2: 4mm
|
|
|
|
|
|
Separation: 0.5 mm (all)
|
|
Separation 1: 1mm, Separation 2: 5mm
|
|
|
|
|
|
It defines the sequence of bling bead types and its spacing.
|

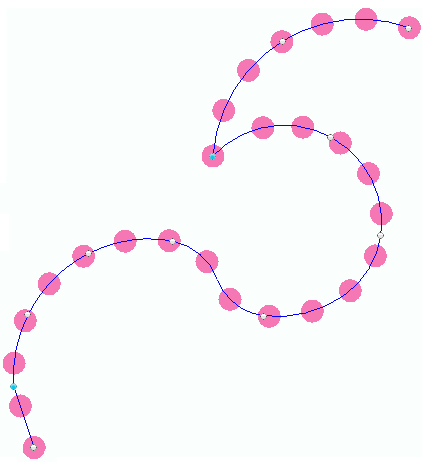

Define how bling beads are spread along the path.
|
Available options are:

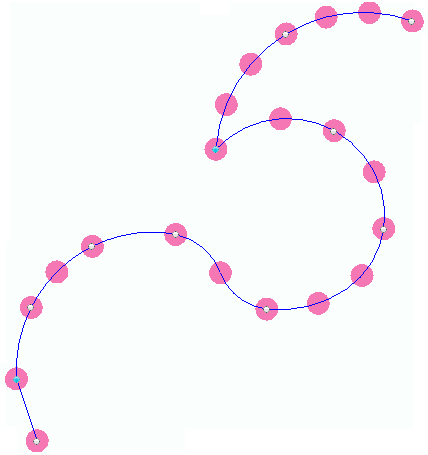

oPath: Beads are placed at the ends of the paths and uniformly along the path.

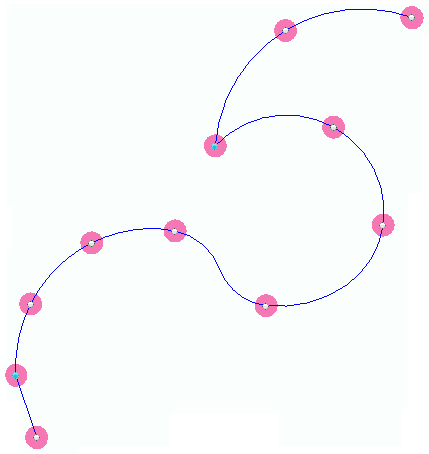

oReference: Beads are placed at the position of nodes only (spacing is ignored).
oPath + Reference: Beads are placed at the position of the nodes and fitting the paths between consecutive nodes.
oPath + Corner: Beads are placed at the position of the corners and fitting the paths between consecutive corners and ends.
|
Path + Reference
|
|
Path + Corner
|
|
|
|
|
|
It controls the distribution of beads along the path.
|
Bling beads can be rotated an angle (from its center). Certainly, it makes sense for non-round beads only.
|
Some object types (path types) allow to automatically rotate the bead according to the tangent angle of the path at the place of the bead. For this case the available options are:
oPerpendicular: Beads are rotated following a variable direction perpendicular to the path, plus the specified angle value.
oTangent: Beads are rotated following a variable direction tangent to the path, plus the specified angle value.
oFixed (default option): Beads are placed at a the fixed angle specified by the angle value.
|
Angle Mode: Fixed
|
Angle Mode: Tangent
|
Angle Mode: Perpendicular
|
|
|
|
|
|
Angle Mode: Fixed
|
Angle Mode: Tangent
|
Angle Mode: Perpendicular
|
|
|
|
|
|
Angle Mode: Fixed
|
Angle Mode: Tangent
|
Angle Mode: Perpendicular
|
|
|
|
|
|
Angle Mode: Fixed
|
Angle Mode: Tangent
|
Angle Mode: Perpendicular
|
|
|
|
|
This property is an optional feature.
|
It allows to rotate bling beads.
|
Read also
•Object PATH
