Area + Radial Sequin Fill

<< Click to Display Table of Contents >>

Navigation:  Embroidery Digitizing > Objects TYPES & Fill STYLES > Specialties: Sequin >

Area + Radial Sequin Fill

EO Uniform Area Radial SQ 5

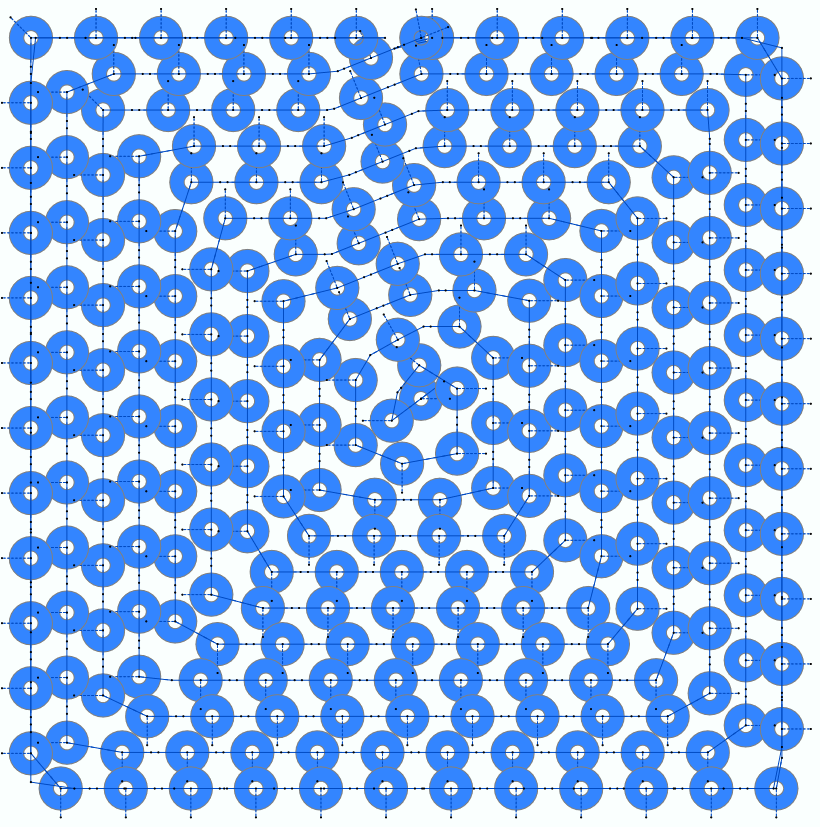

This fill style places a concentric arrangement of sequins adapted to the area. It is intended only for embroidery machines equipped with  sequin devices.
Sample Uniform Area Radial Sequin 1
Sample Uniform Area Radial Sequin 2
Sample Uniform Area Radial Sequin 3

How to create an object of this type?

➢Select the tool Create an Area with Radial Sequin Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the tooltab EMBROIDERY, click on the arrow below the "Area" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

EO_Uniform_Area_Radial_SQ_3



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
EO Uniform Area Radial SQ 1



➢Confirm and GENERATE stitches.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
EO Uniform Area Radial SQ 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Fill Properties



OI Area_Spiralwithsequin_Body





emb summary 20

This is the color number of the thread/color palette.

You can change the color number from the color bar, from the context tooltab or from the object inspector.

The thread color for this color number is defined (and can be redefined) on the thread/color palette.

The stitches of the selected object will be created using the selected color.

This number is also the needle number of the embroidery machine (for multi-needle machines), unless the needle sequence is redefined.

Change Color Number on a Path with Running Stitches


emb summary 1


emb summary 2

Change Color Number on a Path with Zig-Zag Stitches


emb summary 29


emb summary 30

Change Color Number on a Path with E Stitches


emb summary 104


emb summary 105



It specifies the color number of the thread palette corresponding to the main color of the object.



emb summary 181

Defines the sequin type to use for the object. You can select any of the sequin types defined in your Sequin Bar

The number and type of sequins showed in the list will depend on your sequin devices configuration (number of devices per head and number of sequin types handled by each device)

emb summary 500

In this example, there are 2 sequin devices configured in the software (#1 and #2) both of them capable of handling 4 sequin types (A,B,C and D). As the sequin devices are usually installed on the first and/or last needles, when picking a sequin, consider that it may involves a color change to the needle where the device loaded with that sequin is installed.

From the Sequin Bar you may replace any sequin for other from the Sequin Library or you may even create your own.



It specifies the sequin type used for the fill



emb summary 232

Allows to set the free space between consecutive sequins on the path.





Sequin Spacing: 2.0 mm



Sequin Spacing: -2.0 mm


emb summary 178


emb summary 182

Be aware that Margin property will also affect the final spacing between sequins. In fact, the final separation between the edges of consecutive sequins will be:

Final Separation = Spacing + Margin



It defines the horizontal free space between consecutive sequins.



emb summary 183

Set the stitch style to be used to secure the sequins in place and defines its properties

Several styles are available: Tripod, EE, E, Horizontal, Flake, Double Cross, Inverted E, etc.



Fix Style: E

Fix Style: Double Cross

Fix Style: Tripod

emb summary 184

emb summary 185

emb summary 186



Please, note that some of the styles are specially prepared for sequins with eccentric hole.



Fix Style: I NotCent4

Fix Style: V 45 NotCent

Fix Style: X Up NotCent

emb summary 501

emb summary 502

emb summary 503



It defines the stitch type to be used to fix the sequins in place.

hmtoggle_arrow1Rings Spacing



emb summary 234

Spacing value for each of the spiral laps or each of the layers for the concentric property.

The smaller the value, the bigger the density.







Ring Offset 2.0 mm



Ring Offset: 6.0 mm


emb summary 198


emb summary 199



It defines a a spacing value for each of the spiral's laps.



emb summary 200

This property defines the distance used by the system as the limit for automatic thread trim insertion.

When a stitch, a jump or a connection is longer than this limit, a thread trim is inserted.



It defines the distance used as the limit for automatic thread trim insertion.

Paths between Sequins

emb summary 201



Personalizes several parameters regarding the path:

oMaximum Stitch length

It is the maximum stitch length to be used for the connection path between sequins. It becomes relevant when the sequin separation is around 3 times the maximun stitch length.

oOffset from the first end

Distance between the first node of the object and the center of the first sequin. If you increase the value, the sequins will be placed farther away from the first node.

oRepeat Path

This is the number of times the stitches of the path between sequins are repeat. It is similar to the property of the same name available for Running Stitches.



emb summary 504

Up: Offset = 0      Down: Offset = 2 x sequin diameter

It sets several parameters regarding the connections.



hmtoggle_arrow1Stitch Effects Properties



OI Area_Spiralwithsequin_StitchEffects



OI Effects_VariableRingOffset

Define a density variation pattern in order to obtain different effects in the ring fill.





Disable Variable Ring Offset



Enable Variable Ring Offset



emb summary 516



emb summary 517



Click on the Type control to open the Variable Ring Offset Editor

emb summary 518

The vertical axis is Rings Density in %. A 100% means that the rings will be separated the value set in the property Ring Offset, while 50% means the rings will be separated twice of that value.

The horizontal axis is Ring Position. The zero value corresponds to the most outer ring and the value 100 to the most inner one.

Just drag the points with the mouse and trace the profile that produces the effect you want. Click Apply to see the result immediately

Use delete Offset to reset the profile to a flat 100% density one.

It defines a rings offset variation in order to obtain different effects.



hmtoggle_arrow1Adjustment Properties



OI Area_Spiralwithsequin_Adjustment



Filter the small stitches of the object (smaller than the indicated value).

OI Adjustment_DeleteSmallStitches

Options are:

oAutomatic: The filter is enabled and the minimum stitch length used is the general value set in Options And Preferences.

oUser defined: The system will delete stitches shorter than the indicated value.

Sample of Delete Small Stitches: Path with Running Stitches



Before applying the filter



After applying the filter



emb summary 18



emb summary 19

Sample of Delete Small Stitches: Column with Zig-Zag Stitches



Before applying the filter



After applying the filter



emb summary 82



emb summary 83



It deletes the stitches that are smaller than a predefined value (unnecessary & inconvenient).



This is the type of connections to add between consecutive arrays or tracks of stitches (when connecting one track to another).

OI Adjustment_InternalConnectionSequin J

Available options are:

oRunning Stitch

oTrim

oJump

oLock

oJump and Edge

Use connection from:

Specify the distance to trigger the indicated Internal Connection.



It defines the internal connections type.



Insert tack-down stitches to prevent loosing threads when connecting distant parts of the object fill.

OI Adjustment_LockStitchesforSequin

Types of lock stitches are:

oSequin. This is an special lock stitch style that fits inside the hole of the sequin.

oStar

Properties:

•Length: Specify the lock stitch length for Sequin type.

•Repeat: Define the number of times to repeat the lock stitch.



Adds tack down stitches to prevent loosing threads for internal connections



hmtoggle_arrow1Connections & Functions

OI ConnectionsFunctions_Sequin





Defines how the system will manage the position of the Entry and Exit points of the object.



OI ConnectionsFunctions_EntryPoint

Close Point: The system optimizes the position of the point considering the position of other objects and the start and end point of the whole design.



OI ConnectionsFunctions_ExitPoint

User Defined: This option allows that you define the position of the point manually, by adjusting the H and V controls or by moving the point graphically.



Defines the position of the object´s Entry and Exit points





Inserts tack-down stitches at the Entry or Exit points of a sequin object to prevent loosing threads



OI Adjustment_LockStitchesforSequin

Types of lock stitches are:

oSequin. This is an special lock stitch style that fits inside the hole of the sequin.

oStar

Properties:

•Length: Specify the lock stitch length for Sequin type.

•Repeat: Define the number of times to repeat the lock stitch.



Inserts tack-down stitches at entry and exit points to prevent loosing threads





OI ConnectionsFunctions_CommandBefore

This setting instructs the system to add a machine command before the first stitch of the object or after the last one.



OI ConnectionsFunctions_CommandAfter

Just check the mark to enable the setting and select the command you need to insert from the list.



Adds machine commands before and after the object





OI ConnectionsFunctions_UseSequinOnOff

When you enable this setting, the system will insert a machine command Sequin On before the object and a machine command Sequin Off after the object.



Activating this property ensures that any time you create an object with a sequin style fill mode, the sequin devices will be properly activated. Consider that most machines require a Sequin On command before the first sequin is fed, to work properly. Also, once a Sequin On command was issued, many machine commands (like jumps, trims, etc. ) are usually not available until a Sequin Off control is commanded.

However, if your design contains many consecutive objects with sequin styles, sending Sequin On / Sequin Off command with every object may increase the machine production time because, in many machines, the sequin devices will be placed in the work position with every Sequin On command and then back to the stand-by position with every Sequin Off command.

In this cases you will need to manually manage the Sequin On / Sequin Off controls. See the following example :



Consider that your Document Map looks like the one at the left. To manually manage the Sequin On / Sequin off controls:

emb summary 505

1.Uncheck the property Use Sequin On/Off for all sequin objects (2, 3, 4, 6 and 7)

2.Select the object #2 and set the property Command Before to Sequin On. Repeat for the object #6

3.Select the object #4 and set the property Command After to Sequin Off. Repeat for the object #7



So, a first Sequin On command will be placed just before the first sequin object (#2), it will remain On until the object #4 is completed and then a Sequin Off command will be placed. The Path - Running Stitch will be sewn normally (with sequin devices deactivated) and just before the object #6, the sequin devices will be activated again until the object #7 is completed.

Important: Remember that command such us jumps and trims are usually not available while the sequin devices are activated, so the "travels" between the exit point of object #2 and the entry point of object #3 should be short (or should be done with simple running stitches). Same consideration applies to travels between objects #3 and 4 and objects #6 and #7.

Forces a Sequin On command at the begin of the object and a Sequin Off command at the end.





OI ConnectionsFunctions_SequinRotationMode

Sets the orientation of the sequins relative to the fixing stitches.



Use this setting along with fixing stitch style Angle Mode property to get the desired layout



emb summary 506

emb summary 507

Fixing Stitch Style Fixed A + Rotation Mode Bottom



Fixing Stitch Style Fixed B + Rotation Mode Top

emb summary 508

emb summary 509

Fixing Stitch Style Tangential A + Rotation Mode Auto

Fixing Stitch Style Tangential B + Rotation Mode Auto



Important Note: Sequin devices are currently not able to rotate the sequins. So, depending on the position of the sequin device relative to the needle, some layouts are not possible to implement.


emb summary 510

For example, if the sequin device is located behind the needle, and the sequins are fed as in the picture at the left, the layouts shown at the right column in the pictures above, are not possible, while the other two are.

Although the sequin devices are not able to rotate the sequins, the layout Tangential A + Rotation Mode Auto is possible because the thread tension when the fixing stitches are sewn, tends to align the sequin with the stitch direction. This effect is more evident with eccentric sequins.

If the sequin device is located in front of the needle (instead of behind) the layouts shown at the right column are possible while the ones at the left are not.

Defines the sequin orientation relative to the fixing stitches





Enables a Trim command after the object.

OI ConnectionsFunctions_Trim



Auto:

The Trim command will be inserted when the distance to the next object's entry point is greater than the value configured in System Settings > Create and Edit > Stitch Generation > Length for Automatic Thread Trim.

Yes:

The Trim command will always be inserted.



Note:

If the property Command After is set, the Trim command will be inserted after it.

Manages thread trimming at the end of the object.

Read also

•Concepts about the UNIFORM AREA object.

•Concepts about Classic Digitizing.
