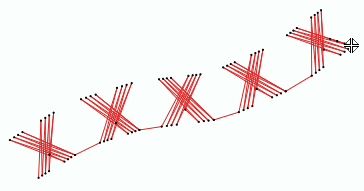

This fill style places multiple decorative stitches (pre-designed motifs) on a path defined by straight or curve segments. Path can be open objects or closed objects. |
|
➢Select the tool Create a Path with Multiple Programmable Stitches through any available way:
oOpen the Smart Design window and select the corresponding tool.
oClick on the arrow below the "Create Objects" button and select the corresponding tool.
oOpen the Embroidery ToolsTab, click on the arrow below the "Path" button and select the corresponding tool.
A context ToolsTab containing the most frequently used properties of this fill style will open.
Press the Pattern button to open the Programmable Stitch Pattern box.
You can define the number of different programmable stitches you want to include in your pattern, select them from the catalog and define their scales individually
➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).
➢Digitize the object (through any digitizing method) by inserting the required elements of this object type. |
➢Confirm and GENERATE stitches.
➢If editing is required, just select the Select Object tool on the Main Toolbar. |
About Fill Style Properties •You can edit (define or modify) all the properties of this object type from the Object Inspector (see below). •The most commonly used properties are also available on the corresponding tooltab. •The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected. |
|
It specifies the color number of the thread palette corresponding to the color of the object
It specifies the programmable stitch components to use.
Specify the separation between programmable stitches.
Number of rows of programmable stitches.
Keep the programmable stitch in its original (angle) position.
Specify where the stitches are placed along the path object. |
|
Change the width of the programmable stitches along a path according to a pre-defined geometric shape.
Add a shape effect to the ends of a Path.
It rounds a corner with a closed angle to avoid a spiky shape. |
|
It deletes the stitches that are smaller than a predefined value (unnecessary & inconvenient).
It adds stitches to fix the thread, recommendable on thread trims and color changes. |
