Vector Images Input/Output

<< Click to Display Table of Contents >>

Navigation:  Images & Graphics > Working with Vector Images >

Vector Images Input/Output

Load a Vector Image

It refers not only to complete vector graphic files, but also to vector objects from any source.

Some imported vector images contain grouped vector objects, whic must be ungrouped if editing is required.

Load a vector image through the Open Image function

Select the tooltab ARTWORK.

On the Vector group, click on the "Open Vector Image" button.

Vector_IO_1

The explorer window will open.



Search the vector image.

Select it and press the Open button.



Note:

You can select the vector file type in the bottom right side of the window.

Vector IO 2

Image will be displayed in the working window.



The ToolTab VECTOR (a context tooltab when a vector object image is selected) is displayed.

You can edit the image if necessary.

Vector_IO_3

Load a vector image through the Catalog function

Select the tooltab HOME.

On the Insert group, click on the "Catalogs" button.



Select "Images - Vector" on the Media Panel.

Select the image and drag it into the workspace.

Vector_IO_4_C

Load a vector image from a Graphic Application

Select the tooltab ARTWORK

On the Vector group, click on the "Get fro Application" button.

Vector_IO_5

You will be able to insert any vector shape created in other applications like Corel Draw or Adobe Illustrator (graphic applications are required).

Insert vector objects created on-the-fly

Insert Shapes / Advanced Shapes from library

Select the tooltab ARTWORK

On the Shapes group, click on the "Shapes" button.

Vector IO 8

The shapes library is displayed.



Click on the shape to insert.

Click on any point of the workspace and drag the mouse without releasing the left button.

During this process, the shape of a figure will be progressively formed.

To create perfect squares or perfect circles, press and hold the CTRL key before dragging the mouse button.

Vector IO 9

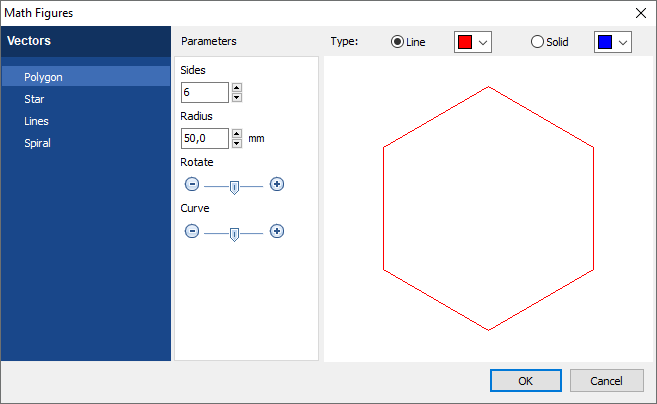

Insert Shapes (vector objects) created with the Figures Editor

Select the tooltab ARTWORK

On the Shapes group, click on the "Editor" button.



Select the shape you want to create: Polygon, Star, Lines or Spiral.

Adjust the specific parameters of that shape.

Define the shape as outline or solid figure.

Set the corresponding color.

Press on the "OK" button to create the new vector object.

Vector IO 10

Insert vector objects based on True Type texts

Select the tooltab ARTWORK

On the Shapes group, click on the "Text" button.

Vector IO 11

A small floating toolbar is open.



Select the font.

Select the size.

Type text or lines of text.

To create multi-line texts, once you have typed the first line, press and hold the CTRL key, and then press ENTER to start typing the second line.

Once you have finished typing the text, press the green check to place it in the working window.

Vector IO 12

Insert vector objects designed on-the-fly

You can also digitize vector objects (see digitizing objects).

Save Vector Objects

You can work with vector objects and use the tools provided by the application to modify the vector graphics.

Later you can save the vector objects to disk directly from the application.

Vector IO 6

Save the vector object on any of the available vector graphic file formats (EMF, DXF, PLT, SVG). Some file formats will keep all the vector objects information while other format won't (only the outline info).

Send Figures to Cutters

You can send a vector object, a group of vector objects or the entire vector image to the vinyl cutter.

Vector IO 7

The cutter driver provided by the cutter manufacturer must be previously installed.

Vector Objects Properties (purposes)

You must set what is each vector object for, from the ToolTab VECTOR. By default, vector objects (or vector images) are auxiliary objects (background reference for the design creation). This property can be changed at any time with a single click.

Auxiliary images

Vector IO 13

Vectors objects can be used as reference for the design creation.

They are hidden on the simulation window.

Vector objects used as "Reference" are listed on the "Auxiliary" tab of the Object Manager.

Cutter images

Vector IO 14

These vector objects are the shapes that will be sent to the cutter device.

They are visible on the simulation window.

Vector objects used as "Cutter" are listed on the "Cutter" tab of the Object Manager.

Printing images

Vector IO 15

The vector objects are part of the final design, for example, as a printed background of the embroidery.

They are visible on the simulation window.

Vector objects used as "Printing" are listed on the "Printing" tab of the Object Manager.

Remove an Image

If you want to remove an image from the active document:

Select it on the workspace

Press the "Delete" key.

You can also find this function on the context menu, available by pressing the right mouse button.

This function does not delete the file, it just remove it from the design.
