Area + Uniform Multi Bling Fill

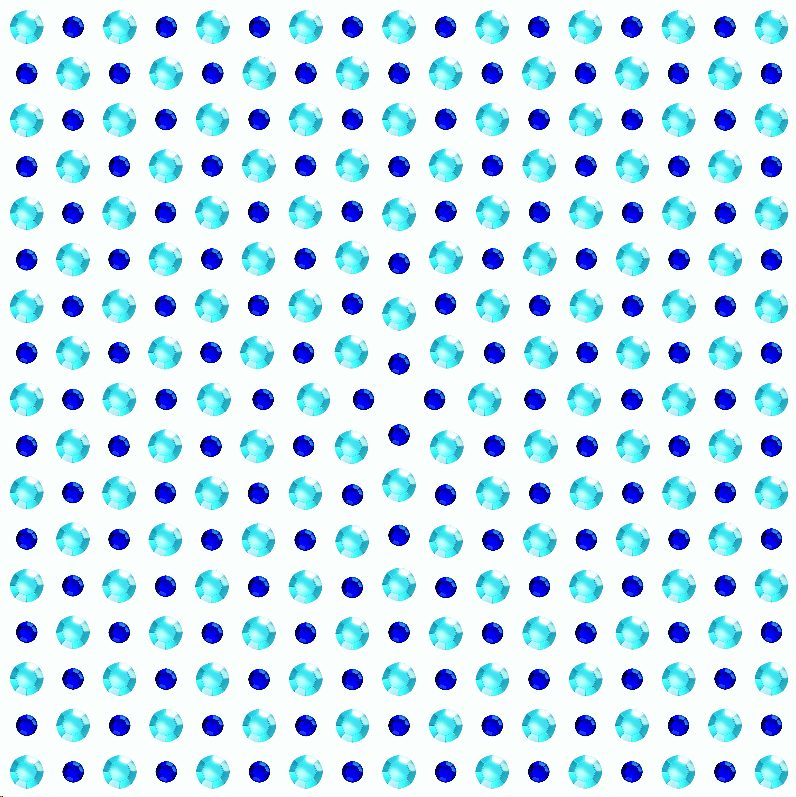

Area Assorted Uniform HF 0

This fill style places several types of bling beads on an closed area, covering it uniformly.
Area Assorted Uniform HF 1
Area Assorted Uniform HF 2
Area Assorted Uniform HF 3

How to create an object of this type?

➢Select the tool Create an Area with Uniform Multi-Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Multi-Bling" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Assorted_Uniform_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Assorted Area with Uniform Fill



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Assorted Area with Uniform Fill 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.



hmtoggle_arrow1Main Properties



OI Area_UniformFill-Multi



Bling Type List

HF summary 7

Also select the bling bead types to use on this object.

Press the left mouse button on this option to unfolds the current bling palette.





Beads types: 2



Beads types: 4


HF summary 27


HF summary 28





Beads types: 2



Beads types: 4


HF summary 48


HF summary 49





Beads types: 2



Beads types: 4


HF summary 68


HF summary 69





Beads types: 2



Beads types: 5


HF summary 83


HF summary 84



It specifies the types of bling beads used in the object.

Beads Separation

HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.

Uniform Beads Layout

HF summary 39

There are 2 different uniform fill styles:

oRadial Fill:  A special algorithm that starts from an initial placement and then moves the beads to set them equidistant. It produces a placement that slightly follows the shape of the object.

oHexagon Fill: Produces a more uniform, shape independent placement.





Radial Fill



Hexagon Fill


HF summary 40 J


HF summary 41 J

It specifies the type of uniform beads layout: Radial or Hexagonal fill.

Margin from Border

HF summary 42

Set the distance from the object borderline to the bling fill style.





Margin from Border: 0.0 mm



Margin from Border: 2.0 mm


HF summary 44


HF summary 45





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 76


HF summary 77





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 98


HF summary 99





Margin from Border: 0.0 mm



Margin from Border: 5.0 mm


HF summary 119


HF summary 120



It sets a minimum distance from the beads to the object border.

Smart Fit

HF summary 43

Smart fitting mode, slightly moves the beads positions to better follow the object shape.





Disable Smart Fit



Enable Smart Fit


HF summary 47


HF summary 46



It enables an alternative fitting mode to place beads in the area.



Read also

•Object AREA



This feature is included in the Multi-Bling Fill Styles Pack
