Offset Contour



<< Click to Display Table of Contents >>

Navigation:  Block Editing >

Offset Contour





This tool creates one or more vector objects, adopting the shape of the selected object block. Objects can be created outside or inside the outline (contour) of the object block. The separation between each created objects (offset value) can be customized. This function is enabled when a block (one object, several objects or the whole design) is selected.



icon-warning

You can create vector objects using the offset contour tool, even when the object block contains objects of different decoration specialties.



How to use the offset contour tool?

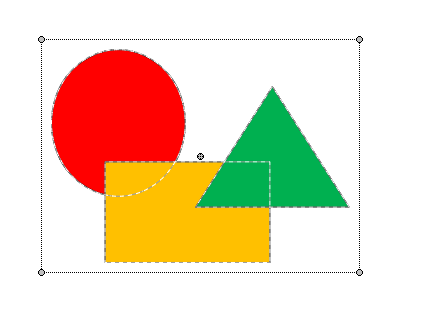

Select a block (one or several objects)

vector-offset-contour-1

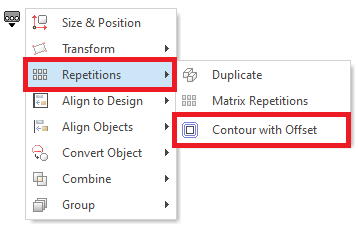

Execute the function Create Offset Contour. This function is available on the BLOCK MENU.



Vector_Repeat_1

The Offset Contour tool will open.

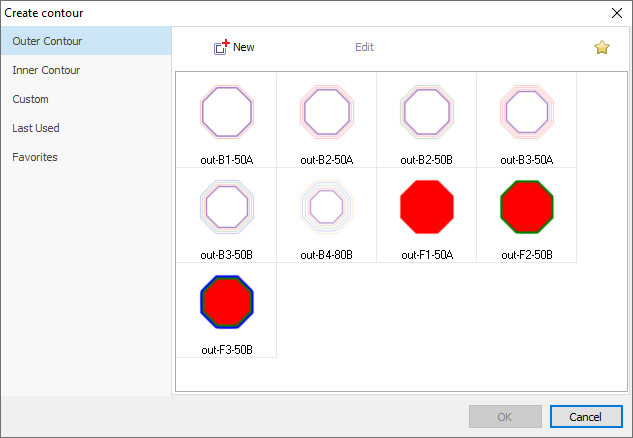

This tool offers a catalog with several predefined settings (for outer contour and inner contour).

oOuter Contour: Create new objects towards the outside of the original block.

oInner Contour: Create new objects towards the inside of the original block.

You can use any of the listed settings or create the new objects with your custom settings.

vector_contour_offset_selector

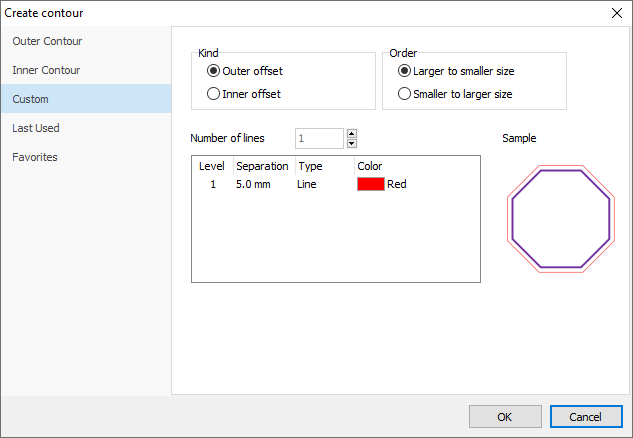

Options to customize the settings are:

Direction: Outer or Inner Contour

Order: Smaller to Larger o vice-versa

Number of objects to insert

Separation between objects to insert

Object type of each object to insert

Vector_Repeat_4

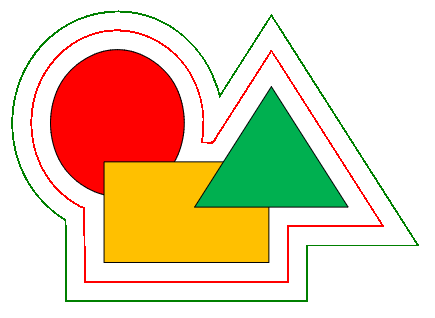

After the setting is completed, click on Ok to confirm.

vector-offset-contour-2



icon-info-1

You can select the previously used settings from the Last Used option on the contour offset tool.

You can select any of your favorite settings from the Favorite option on the contour offset tool. You can set a particular setting as a favorite setting: Select that setting and click on the star icon.

You can also edit a custom setting: Select that setting and click on the Edit button.
