Block Editing > Block Align

Block Alignment refers to a set of functions or actions that can be applied to a group of objects, where those objects are moved from their position according to the alignment function.

Note: These tools also work with bead objects (disassembled beads)

This functions are available (when a block is selected) from:

•The Main Toolbar

Block Align functions

▪Alignment of several objects (each other)

▪Alignment of objects to design limits

How to execute the block alignment functions?

block_editing_5

Alignment of several objects (each other)

block_editing_51

You can align a group of objects each other to the left, right, top, bottom or center, in both axis or in either of the two axis. For the alignment to the left, the object located to the left will define the"left point" where to move the left side of all the objects. Alignment functions to other directions work analogously.

Example:

	This is the original design. All the objects are selected.

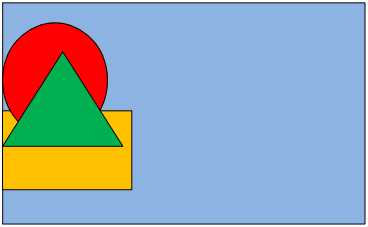

	Objects aligned to the left. The left of all the objects are on the same line
	Objects aligned to the top. The top of all the objects are on the same line.
	Objects aligned to the center. The center of all the objects are on the same line.
	Objects Distributed Vertically The vertical separation between the object's centers is the same
	Objects Distributed Horizontally The horizontal separation between the object's centers is the same

Alignment of a block of objects to the design limits

block_editing_52

You can align an entire block with respect to the design size limits: to the left limit, right limit, top limit, bottom limit or center, in both axis or in either of the two axis. For the alignment to the left limit, the point to the left of the design will define the"left point" where to move the left side of the whole block. Alignment functions to other directions work analogously. These functions do not alter the position of the objects inside the block; Instead, they move the entire block to the new position inside the design.

Example:

	This is the original design The 5 figures are a block of 3 objects inside a design.
	The block is aligned to the right of the left.
	The block aligned to the top of the design.
	The block is aligned to the horizontal center of the design.
