Path + Regular Bling Fill

<< Click to Display Table of Contents >>

Navigation:  Bling on the Embroidery Software > Bling Digitizing > Bling Fill STYLES > Standard Bling Fill Styles Pack >

Path + Regular Bling Fill

Path Single HF 0

This fill style places bling beads (rhinestones, sequins, spangles) on a path object defined by straight or curve segments. Paths can be open objects or closed objects.

Path Single HF 1
Path Single HF 2
Path Single HF 3

How to create an object of this type?

➢Select the tool Create a Path with Regular Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Single-Bling" button and select the corresponding tool.

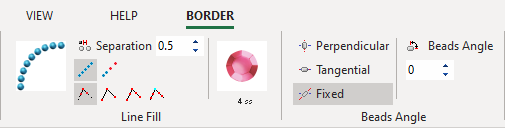

A context ToolsTab containing the most frequently used properties of this fill style will open.

Path_Single_HF_4

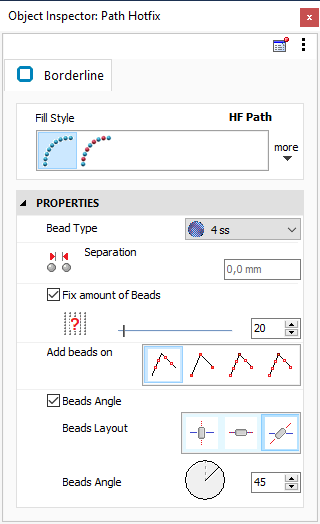

➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).

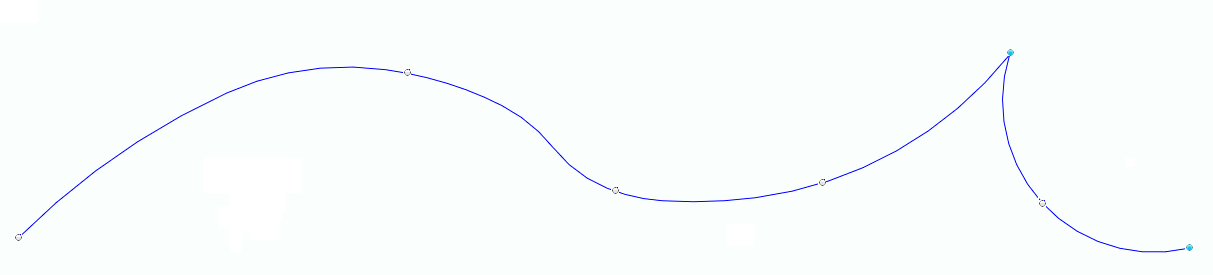

➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.

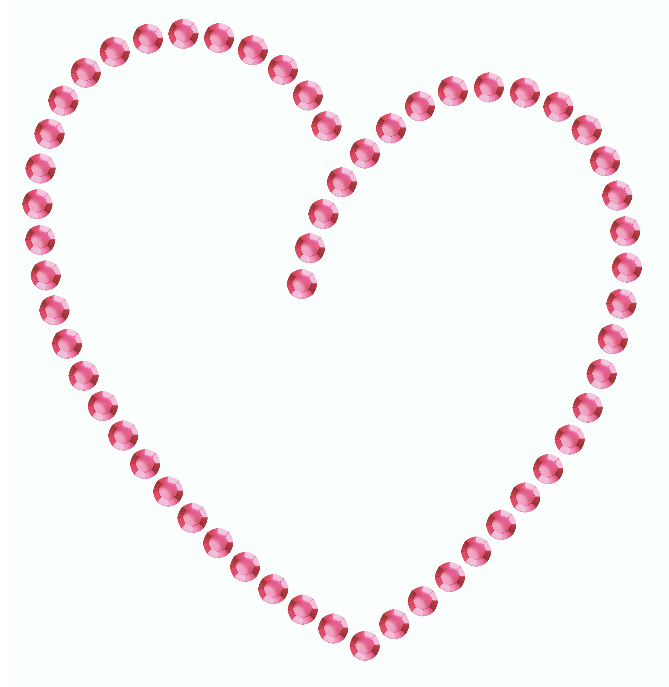

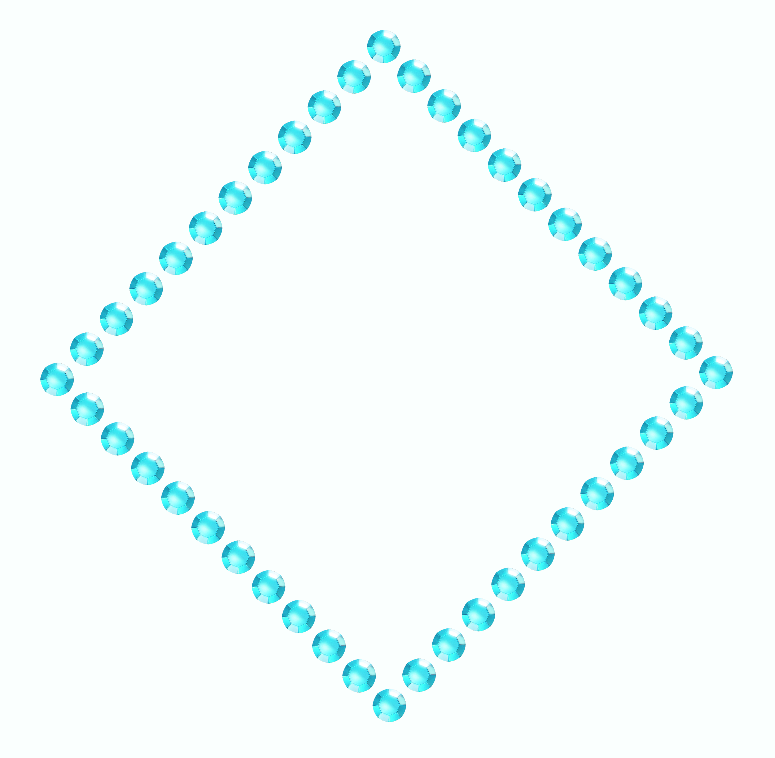

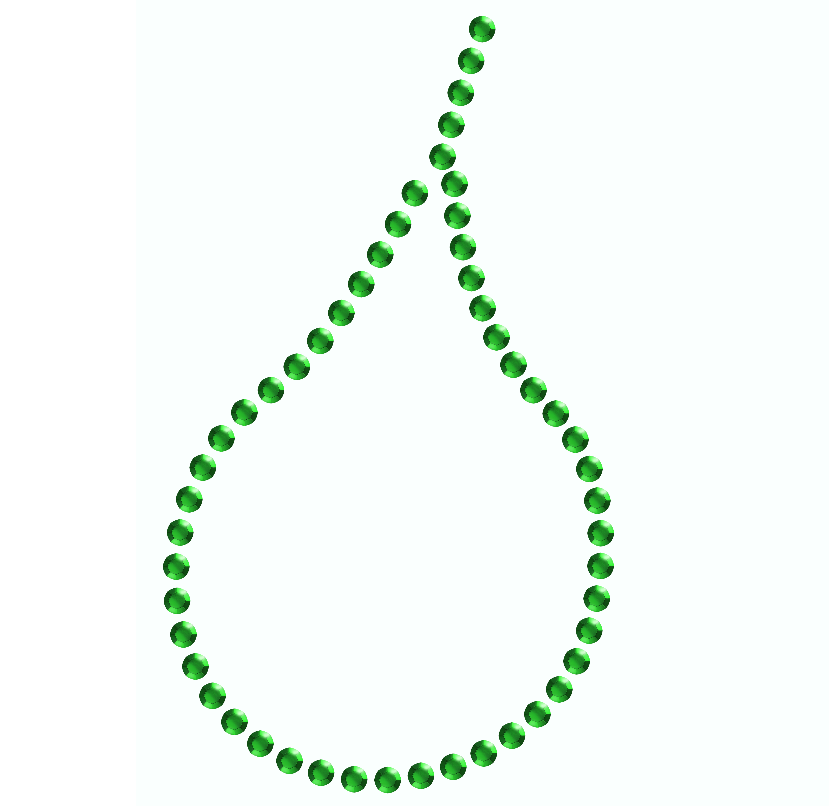

HF Single Path



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.

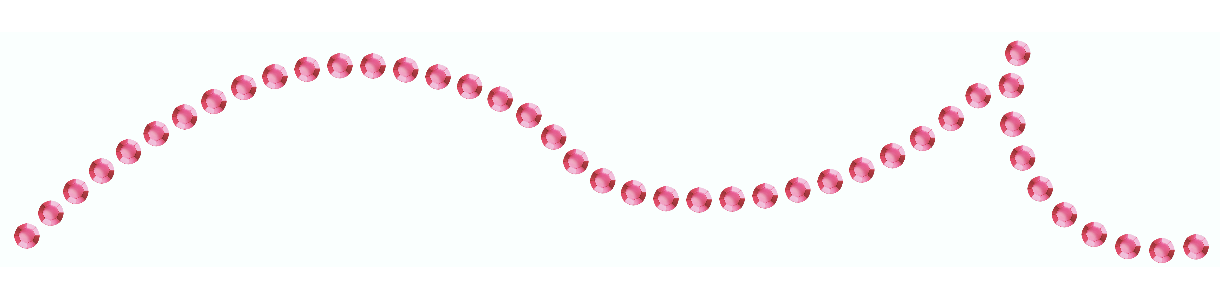

HF Single Path 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.



hmtoggle_arrow1Main Properties



OI Path_RegularFill



Bling Type

HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.

Beads Separation

HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.

Beads Count

HF summary 2

Specify the aproximate number of bling beads for the object.

Enabling this property, the Separation property is disabled.





Beads Count: 6

Beads Count: 10

Beads Count: 17


HF summary 11
HF summary 12
HF summary 13





Beads Count: 33

Beads Count: 52

Beads Count: 76


HF summary 36
HF summary 37
HF summary 38



It sets a specific number of beads for the object.

Path Fitting Mode

HF summary 4

Define how bling beads are spread along the path.

Available options are:

oPath: Beads are placed at the ends of the paths and uniformly along the path.

oReference: Beads are placed at the position of nodes only (spacing is ignored).

oPath + Reference: Beads are placed at the position of the nodes and fitting the paths between consecutive nodes.

oPath + Corner: Beads are placed at the position of the corners and fitting the paths between consecutive corners and ends.





Path



Reference


HF summary 18


HF summary 19





Path + Reference



Path + Corner


HF summary 20


HF summary 21



It controls the distribution of beads along the path.

Beads Angle Mode

HF summary 5

Bling beads can be rotated an angle (from its center). Certainly, it makes sense for non-round beads only.

Some object types (path types) allow to automatically rotate the bead according to the tangent angle of the path at the place of the bead. For this case the available options are:

oPerpendicular: Beads are rotated following a variable direction perpendicular to the path, plus the specified angle value.

oTangent: Beads are rotated following a variable direction tangent to the path, plus the specified angle value.

oFixed (default option): Beads are placed at a the fixed angle specified by the angle value.





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 24
HF summary 23
HF summary 22





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 78
HF summary 79
HF summary 80





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 102
HF summary 101
HF summary 100





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 123
HF summary 122
HF summary 121

This property is an optional feature.



It allows to rotate bling beads.
