Area + Texture Multi Bling Fill

<< Click to Display Table of Contents >>

Navigation:  Bling on the Embroidery Software > Bling Digitizing > Bling Fill STYLES > Standard Bling Fill Styles Pack >

Area + Texture Multi Bling Fill

Area Assorted Texture HF 0

This fill style places a predefined bling beads arrangement on an closed area region. Textures can be considered as pre-built designs in which the area behaves as a clipping boundary.
Area Assorted Texture HF 1
Area Assorted Texture HF 2
Area Assorted Texture HF 3

How to create an object of this type?

➢Select the tool Create an Area with Texture Multi Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create Objects" button and select the corresponding tool.

oOpen the Bling ToolsTab, click on the arrow below the "Single-Bling" button and select the corresponding tool.

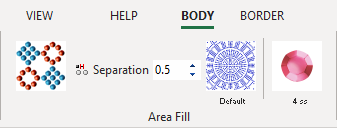

A context ToolsTab containing the most frequently used properties of this fill style will open.

Area_Assorted_Texture_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).

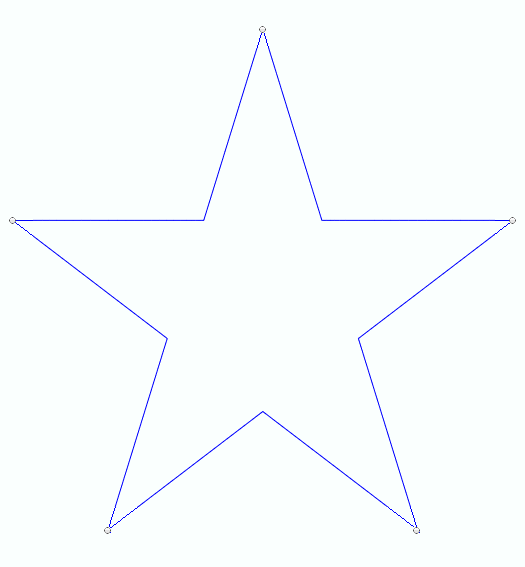

➢Digitize the object (through any digitizing method) by inserting the required elements of this object type.
HF Assorted Area with Texture Fill new



➢Confirm and GENERATE bling beads.



➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Assorted Area with Texture Fill new 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.



hmtoggle_arrow1Main Properties

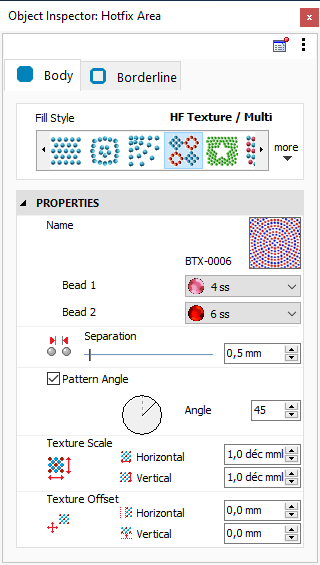

OI Area_Texture-Multi



Bling Texture

HF summary 130

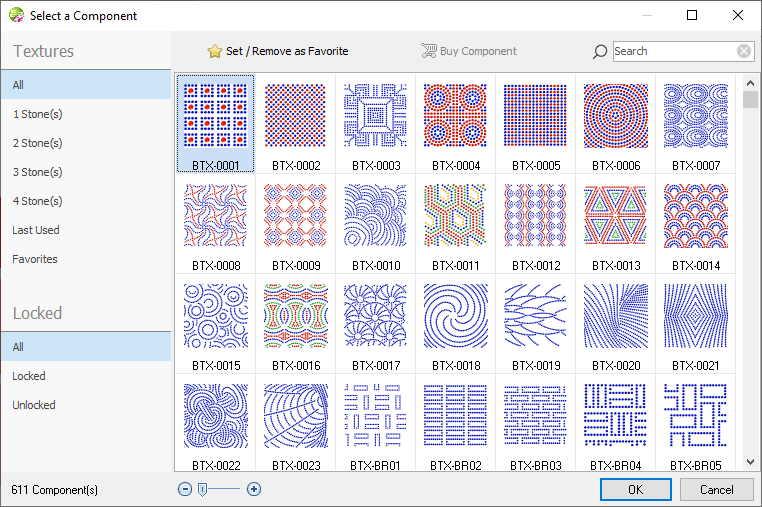

Select the Bling Texture component from the library.



HF_summary_131





Sample



Sample


HF summary 132


HF summary 133



Sample



Sample


HF summary 134


HF summary 135



It specifies the bling texture to apply.

Bling Type

HF summary 1

Specify the bling bead type of the object (the order number of the bling palette).

Bling Types on Path Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 9


HF summary 10

Bling Types on Area with Uniform Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 32


HF summary 33

Bling Types on Area with Flat Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 54


HF summary 55

Bling Types on Area with Flexible Fill Style



Bead Type Number: 1



Bead Type Number: 2


HF summary 70


HF summary 71



It specifies the bling bead type of the object.

Beads Separation

HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.

Texture Angle

HF summary 6

Angle to rotate the bling texture.

Default value is 0 (zero).





Angle: 0



Angle: 45 degrees


HF summary 138


HF summary 139



It specifies the angle of the texture.

Texture Scale

HF summary 209

Change the scale (horizontal & vertical) of the texture pattern.





Scale H & V: 0.1 mm



Scale H & V: 0.2 mm


HF summary 140


HF summary 141

It specifies the scale of the texture.

Texture Offset

HF summary 210

Move the position of the texture pattern on the bling object





Offset H: 1.0 mm, V: 1.0 mm



Offset H: 30.0 mm, V: 30.0 mm


HF summary 142


HF summary 143



It specifies a displacement value for the texture.



Read also

•Object AREA
