Production Time Estimate

<< Click to Display Table of Contents >>

Navigation:  Embroidery Input/Output >

Production Time Estimate

This feature produces a production time estimate.



You can execute this function from the menu FILE > Information.

Misc Costing 0

The production time is based on:

The number of pieces of the job order

Design characteristics: stitch count, color count, trim count, length of stitches, etc.

Machine features: heads, needles per head, speed chart, color change time, thread trim time, etc.

Operator time: hooping time, bobbin change time, etc.

The more accurate you can specify these parameters, the more accurate the estimation is. You can use any of the pre-defined machines or you can create your own machine and set the machine parameters. Default values on the pre-defined machines are statistical values.



To get a quick initial time estimation:

Type the number of pieces to produce

Select a machine from the list.

The estimate is computed almost instantly.



You will get a time usage graph with dividers for the main events and a job summary, with run count, average speed, etc.

Misc Costing 1

You can edit some basic characteristics of the machine to consider.

Misc Costing 2

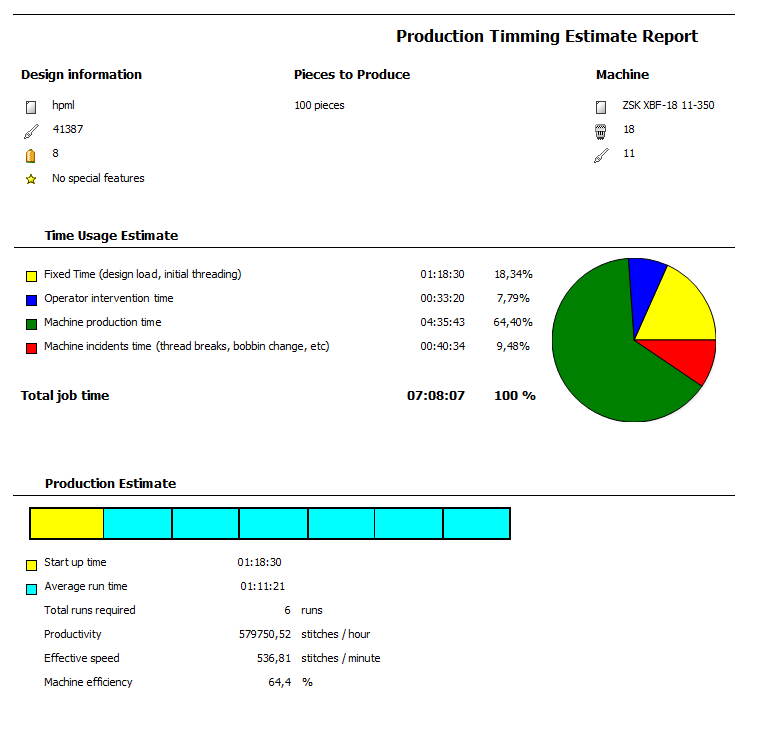

Click on the Print button (located at the bottom left corner of the window) the production time estimation report.



Misc Costing 4





Software Level (Perpetual License)

Included

Available (extra feature) in



SE-10 Edit (Essentials)

Option

Embroidery Order Time & Quote



SE-20 Convert (Lite)

Option

Embroidery Order Time & Quote



SE-30 Create (Liberty)

Option

Embroidery Order Time & Quote

Software Level (Subscription)

Included

Available (extra feature) in



SEU Express

No





SEU Standard

No





SEU Liberty

Option

Embroidery Order Time & Quote
