Image to Photo Stitch

<< Click to Display Table of Contents >>

Navigation:  Auto-Digitizing (Art to Stitch) >

Image to Photo Stitch

This tool scans the image and automatically creates a design that is made basically of tracks with zig-zag stitches (and other stitch types) which size vary according to the average color & brightness of the region of the image that is under that stitch.



Photo Stitch 12 J

arrow 1

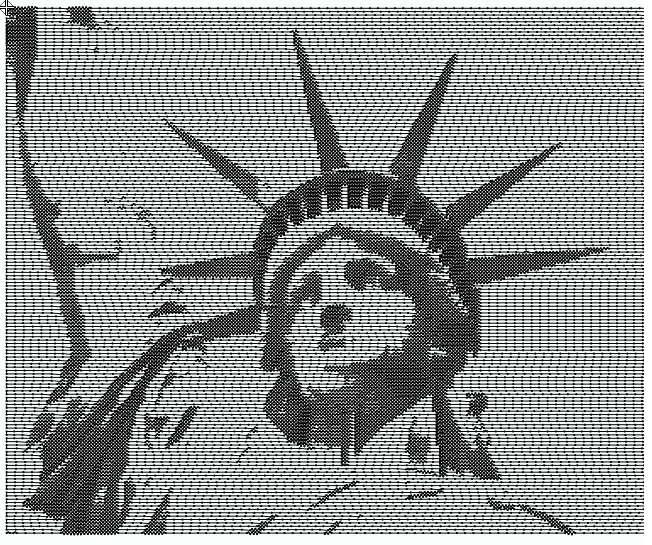

Photo Stitch 13 J

arrow 1

Photo Stitch 14 J



Some of the characteristics of this auto-digitizing mode are:

It works with black and white, grayscale and color images.

It produces monochromatic and multi-color embroideries.

There are multiple photographic effects in each mode.

It enables to select controls and parameters: adjust quality and speed levels, contrast of black and other colors, resolution (spacing between tracking lines, width of cells and margins), compensations and small stitches filters, stitches width and density, etc.

After changing any of these parameters to obtain a different result, you only have to change the properties of stitch creation and generate them again.



Suggestions to obtain the best result using Photo-Stitch

Optimum images meet the following conditions:

Images with big shade contrasts (for instance, a black and white image)-

Should not be less than 10 cm. and not bigger than 16 cm. width.

It is recommended for portrait images (faces, etc), not for landscapes.

Using images with less background, as this will produce a blurred and undefined result.

icon-warning

Take into account that the resulting embroidery is not an image, it will neither have the same resolution of the original image.

Create a Photo Stitch design

Load a Raster Image

Open/load a raster image (from file, from scanner, etc). We use an image from the Catalog.

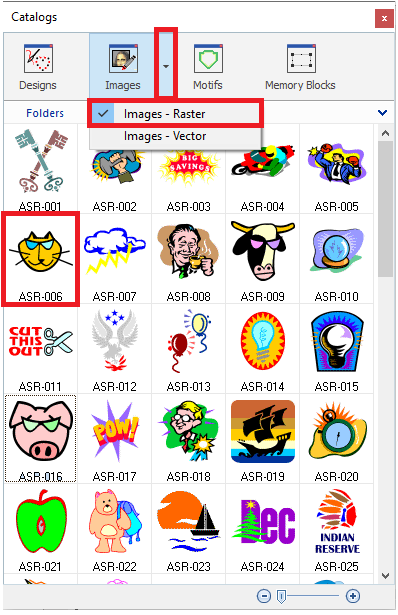

Click on CATALOGS on the MAIN toolbar.

Select a media type (we use Raster Images).

Select the file folder.

The bottom panel of the Catalog displays the content of the folder according to the selected media type.

Select the "ASR-006" raster image from the "Artwork > Raster" folder.

Drag the image into the workspace to load it.

Photo_Stitch_0

Select the tooltab EMBROIDERY

A2S_1

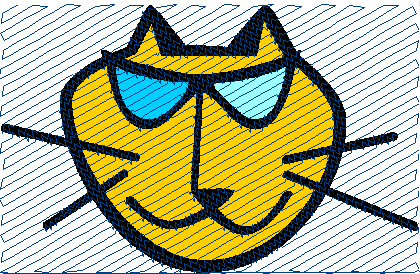

Click on the Art to Stitch" tool.

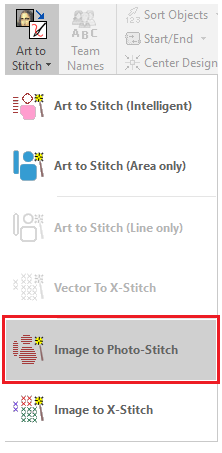

Select the Art to Stitch mode:

oImage to Photo-Stitch

Photo Stitch 1

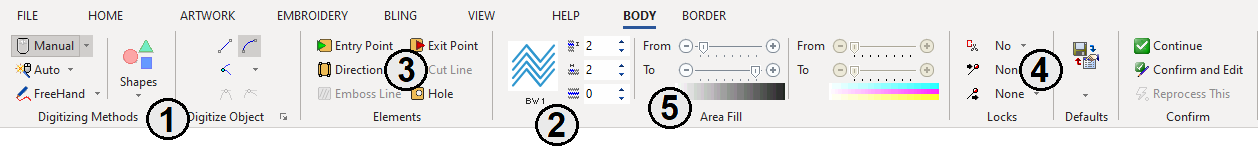

Photo Stitch tooltab

The Cross Stitch tooltab is displayed. You can specify each property required to create the photo-stitch design.



Photo_Stitch_3



Basically, the sequence to create photo-stitch designs is:

1.Digitize the boundary shape: you can use a shape from the library or you can digitize the shape you want.

2.Select the stitch type and the stitch properties: spacing, height and width of the cells.

3.Set the complementary geometric elements of the object: entry and exit points, stitch direction, holes, etc.

4.Add trims and lock stitches if necessary.

5.Adjust the sliding controls to change the color / brightness sensitivity (continue when you get the expected result).



icon-warning

You can hide the image to appreciate the result in detail. You can also click on the Simulation button (F7) to hide the background vector and show the simulated stitches.

icon-warning

The obtained result depends on the assigned properties, and these properties are not same for all the images. Adjust parameters and perform several attempts until you achieve the expected result.

Photo Stitches Features

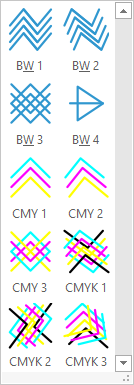

The selected mode is the stitch type (simmilar to the programmable stitches). The properties of each mode may vary.

Photo Stitch 4

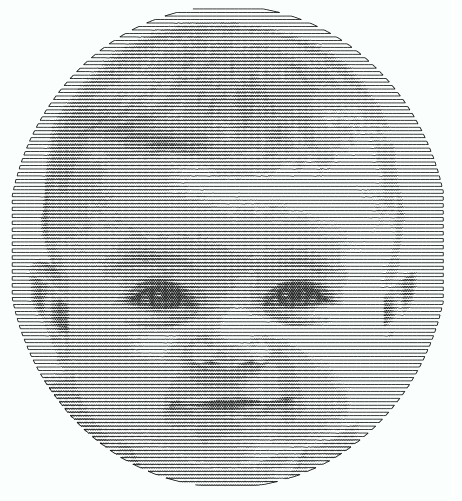

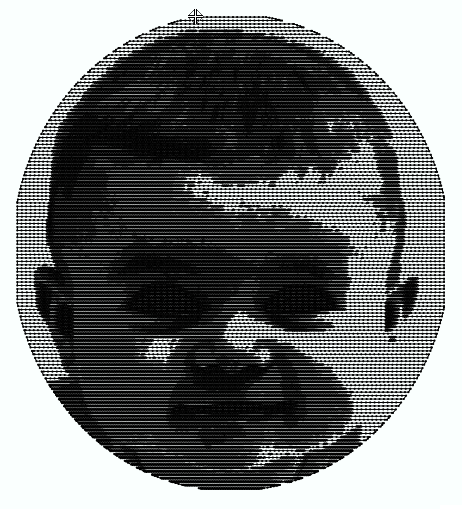

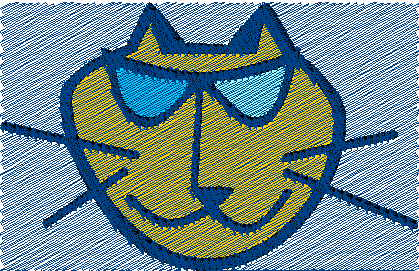

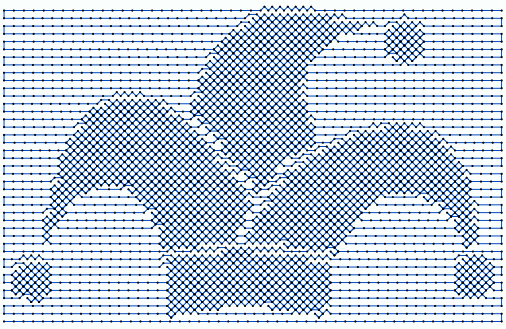

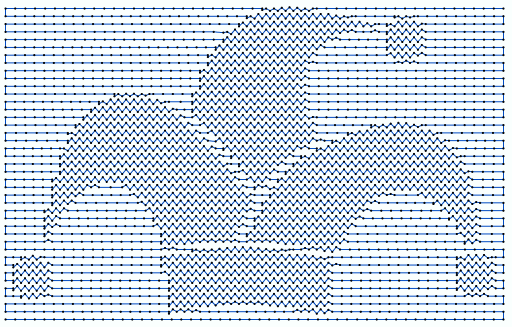

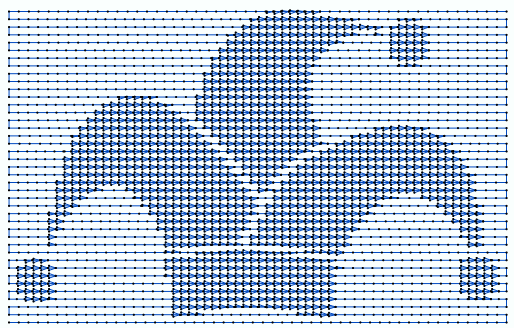

Here are some designs using different modes with the same image.

They can use one or several needle colors.

Photo Stitch 5a
Photo Stitch 5
Photo Stitch 5b
Photo Stitch 5d

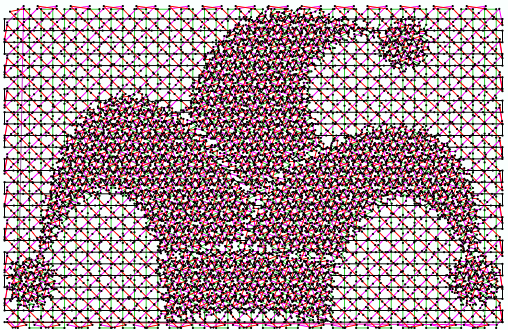

Row Spacing

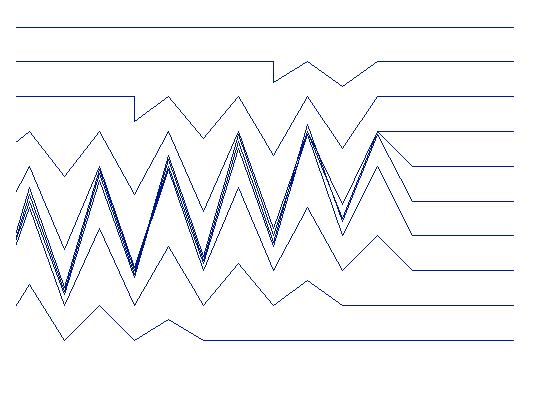

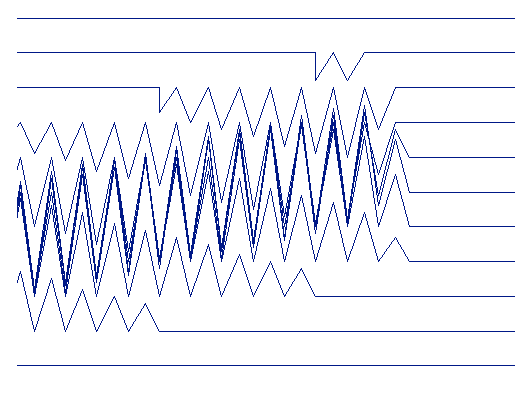

Define the spacing between tracks (stitch rows) during each sweeping (either Zig-Zag or Running stitches).

Photo Stitch 6



Photo Stitch 7

Cell width and height

Define the horizontal and vertical resolution of the photo-stitch. Set these values according to the resolution you want.

The width value affects to the stitch density (and the stitch count), while the height value affects the maximum stitch lenght.

Photo Stitch 8



Photo Stitch 8a

Contrast for black and color

From these options you can adjust the sensitivity of the stitch creation, according to the different color contrasts of the image.

It is important to emphasize the grayscale range where the image offers a higher contrast.

Values lower than "From" will produce the same result as the minimum value.

Values higher than "To" will produce the same result as the maximum value.

The range from "From" to "To" with then offer a higher contrast that the original image.

Photo Stitch 9

1.Brightness levels (minimum to maximum)

2.Slider "From"

3.Slider "To"



Photo Stitch 10

arrow 1

Photo Stitch 11
