<< Click to Display Table of Contents >> Navigation: What's new in Version 23.11 > What's new in version 23.11 (embroidery)? |

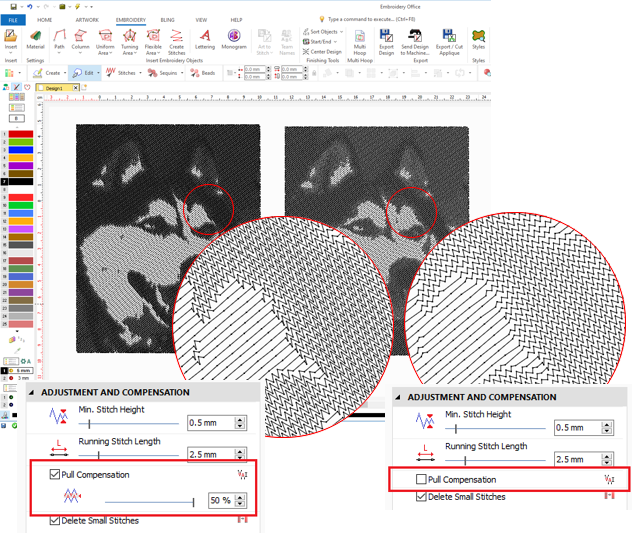

Photo Fill stitch style has a new property, Pull Compensation. You can use it not only to compensate the thread tension but to enhance the black regions of the image as well.
Find the new Pull Compensation property at the Object Inspector, section Adjustment and Compensation.

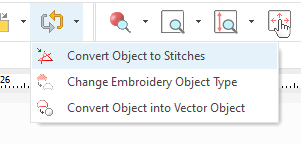

Easy conversion to plain stitches
Convert any embroidery object to plain stitches with the Convert Object to Stitches command.
The tool appears inside the Convert group at the main toolbar
•When inserting stitches (Stitch Edition), a new tooltip showing the x and y values appears close to the cursor to improve precision. •Stitch Navigation: Navigation using the arrow keys now behaves in the same way both in the Stitch List view and in the main graphical view (Up/Down: 1 stitch, Left/Right: multiple stitches). •Zoom In: You can now zoom in up to 8000% (previous limit was 2500%) for greater comfort on very precise jobs. •Snap to Guidelines: You can now disable this snap by unchecking Options > Create and Edit > Snaps > Snap to guidelines •The order set in the Open and Save boxes is now preserved during the work session. •When moving an object (or block), the frame now uses a contrast color to improve visibility on dark backgrounds |
•Open/Save images form: Now you can choose to use an standard Windows box or the product own box. Standard Windows box is faster (specially for network folders) but is not able to show thumbnails for emf, wmf and svg images. You can control what box to use from Options > Project > General > Use Standard Windows dialog to Open/Save images •Fast images browsing: Some vector type images (emf, wmf and svg) require more time to display as thumbnails. If you have folders with many images, you can now speed up the thumbnails view by skipping the preview of those images types using the control located at Options > Project > General > Fast image browsing. Note that this check also affects the Catalog views. |
•Change Object Type: the list of object types was displayed shifted. Now it is displayed properly. •Simulation View: It was fixed the error that appeared when using the sequin palette B. •Object Inspector: For Texture fill style, the list view mode of the Object Inspector now shows the Custom Stitch properties correctly. •Fixed a bug that caused the Embroidery Objects view to scroll to the beginning when deleting an object selection or hiding an object. •Fixes in the Selection by Rectangle function in the Object Map. •Object repetitions now uses the contrast color to allow visibility on dark backgrounds. |
•Delete stitches: Fixed error that appeared when manually deleting all the stitches of a path object type. •Manual jumps: Fixed a bug that prevented the creation of manual paths with jump stitches. •Fixes to Mirror functions when using stitch styles that support offset property. |
•Fixes in SVG reading function, when the files are created using CorelDraw •The Save function in CorelDraw, which did not work in some Windows environments, now works correctly. •Fixed the problem that caused that, when using the Addition function in contour-only figures, the result was not visible. •Repairs to the Restore Defaults command in the options box. •Several memory management fixes to avoid performance degradation after a certain working time. |
