Area + Flexible Multi Bling Fill

<< Click to Display Table of Contents >>

Navigation:  Bling Digitizing > Bling Fill STYLES > Multi-Bling / Color Fill Styles Pack >

Area + Flexible Multi Bling Fill

Area Assorted Flexible HF 0

This fill style distributes several types of bling beads on a closed area, as a set of paths with regular bling fill that follow a direction line (straight or curve).
Area Assorted Flexible HF 1
Area Assorted Flexible HF 2
Area Assorted Flexible HF 3

How to create an object of this type?

➢Select the tool Create an Area with Flexible Multi-Bling Fill through any available way:

oOpen the Smart Design window and select the corresponding tool.

oClick on the arrow below the "Create" button and select the corresponding tool.

oOpen the Bling ToolTab, click on the arrow below the "Inner Area" button and select the corresponding tool.



A context ToolsTab containing the most frequently used properties of this fill style will open.

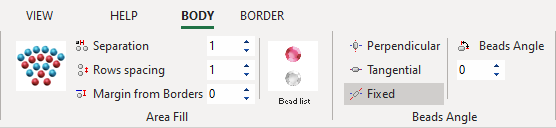

Area_Assorted_Flexible_HF_4



➢Set the fill properties from the ToolsTab (above) or the Object Inspector (below).



➢Digitize the contour of the area through any digitizing method:

oGeometric shapes

oClassic/Manual digitizing

oAuto-Trace over an image

oFree-Hand

➢Digitize the FLEXIBLE DIRECTION line:

Press the DIRECTION button on the tooltab, and then enter the nodes (straight, curve) of the direction line.

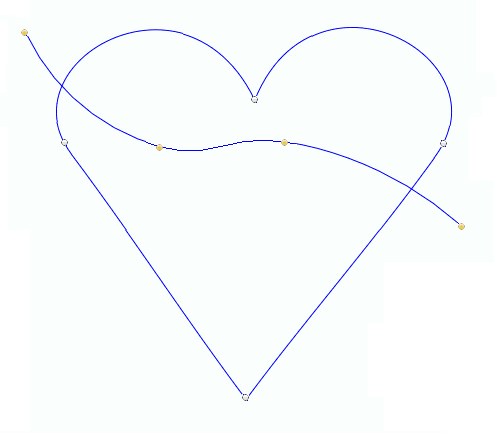

HF Assorted Area with Flexible Fill



➢Confirm to generate the bling beads (click on the Enter key, or press the mouse wheel button, or the Generate button on the Quick Access bar).

➢If editing is required, just select the Select Object tool on the Main Toolbar.
HF Assorted Area with Flexible Fill 2

icon-info-1

About Fill Style Properties

•You can edit (define or modify) all the properties of this object type from the Object Inspector (see below).

•The most commonly used properties are also available on the corresponding tooltab.

•The current value of the properties are displayed on the Object Inspector or the tooltab when an object of this type is being created or when an existing object of this type is selected.





hmtoggle_arrow1Main Properties

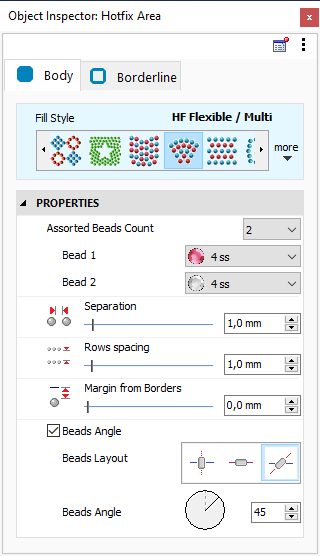

OI Area_Flexible-Multi





HF summary 7

Also select the bling bead types to use on this object.

Press the left mouse button on this option to unfolds the current bling palette.





Beads types: 2



Beads types: 4


HF summary 27


HF summary 28





Beads types: 2



Beads types: 4


HF summary 48


HF summary 49





Beads types: 2



Beads types: 4


HF summary 68


HF summary 69





Beads types: 2



Beads types: 5


HF summary 83


HF summary 84

It specifies the types of bling beads used in the object.



HF summary 3

Distance between 2 neighbor bling beads.

A distance of 0 (zero) means that bead has no separation with the beads next to it.

Beads Separation on Paths:



Beads Separation: 0.3 mm



Beads Separation: 1.0 mm


HF summary 14


HF summary 15

Beads Separation on Areas:



Beads Separation: 0.5 mm



Beads Separation: 1.5 mm


HF summary 34


HF summary 35

Variable Beads Separation on Paths:



Beads Separation: 2.0 mm at the end



Beads Separation: 4.0 mm at the end


HF summary 17


HF summary 16

Variable Beads Separation on Areas:



Beads Separation: 2.0 mm at the end



Beads Separation: 5.0 mm at the end


HF summary 186


HF summary 187



It specifies the average distance between beads.



HF summary 50

Distance between the beads rows.





Row Spacing: 1.0 mm



Row Spacing: 2.5 mm


HF summary 56


HF summary 57





Row Spacing: 1.5 mm



Row Spacing: 3.0 mm


HF summary 74


HF summary 75



It defines the distance between bead arrays or rows.



HF summary 42

Set the distance from the object borderline to the bling fill style.





Margin from Border: 0.0 mm



Margin from Border: 2.0 mm


HF summary 44


HF summary 45





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 76


HF summary 77





Margin from Border: 0.0 mm



Margin from Border: 3.0 mm


HF summary 98


HF summary 99





Margin from Border: 0.0 mm



Margin from Border: 5.0 mm


HF summary 119


HF summary 120



It sets a minimum distance from the beads to the object border.



HF summary 5

Bling beads can be rotated an angle (from its center). Certainly, it makes sense for non-round beads only.

Some object types (path types) allow to automatically rotate the bead according to the tangent angle of the path at the place of the bead. For this case the available options are:

oPerpendicular: Beads are rotated following a variable direction perpendicular to the path, plus the specified angle value.

oTangent: Beads are rotated following a variable direction tangent to the path, plus the specified angle value.

oFixed (default option): Beads are placed at a the fixed angle specified by the angle value.





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 24
HF summary 23
HF summary 22





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 78
HF summary 79
HF summary 80





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 102
HF summary 101
HF summary 100





Angle Mode: Fixed

Angle Mode: Tangent

Angle Mode: Perpendicular


HF summary 123
HF summary 122
HF summary 121

This property is an optional feature.

It allows to rotate bling beads.
