A quick example

This is a simple example about how to use the lettering system.



1.Activate the Lettering System (tooltab BLING, LETTERING function)

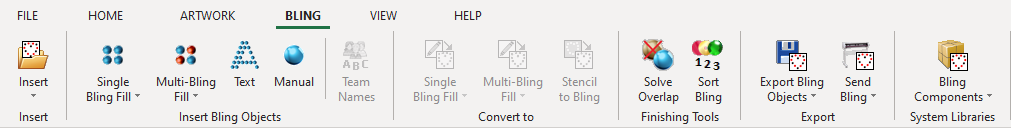

Select the tooltab BLING.

HF_How_to_Start_1

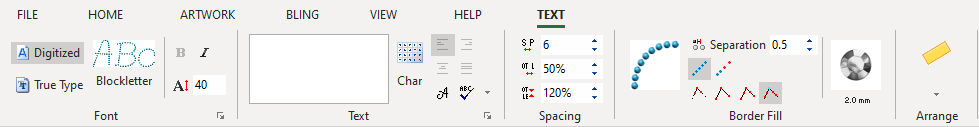

Click on the LETTERING button. It opens the tooltab TEXT or LETTERING.

HF_How_to_Start_2



2.Select the type of font (pre-digitized font or true type font)



Choose the font type:

oPre-digitized fonts (system fonts)

oTrue type fonts (windows fonts)

HF How to Start 3



3.Select the font from the font catalog

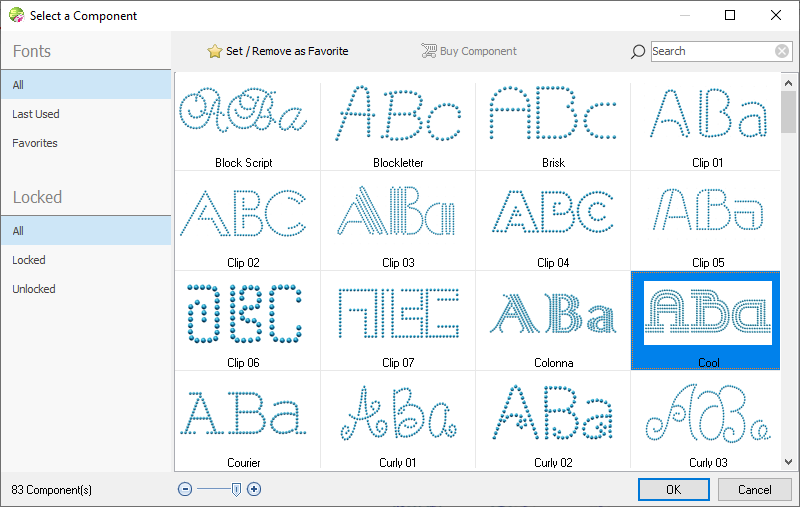

Select the font from the font gallery



HF_How_to_Start_4



4.Set the size of the letters (character box size, before any transformation)



Set the height of the font



HF How to Start 3

5.Type the text (using the available characters)



Type the text using any character included in the selected font.

HF How to Start 5

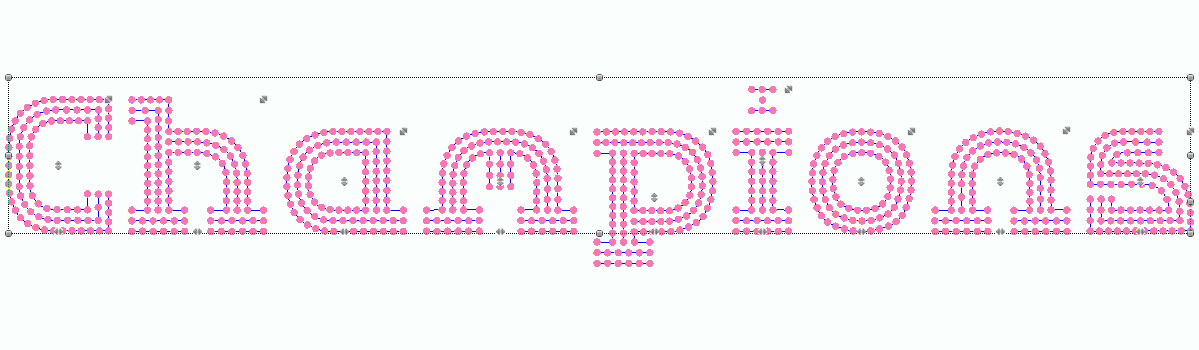

Click on the Enter key. The text is displayed on the workspace and it is ready to use!

HF How to Start 6



6.Set the letter spacing, word spacing and lines spacing.



Set the Spacing between characters, between words and between lines.

HF How to Start 7



7.Adjust the fill properties.

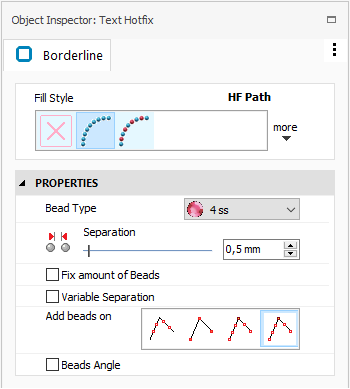

Set the Fill Style and adjust the Fill Properties for all the characters from the tooltab LETTERING or from the OBJECT INSPECTOR.

HF How to Start 10



HF How to Start 11



8.Select the text layout (line, circle, etc)

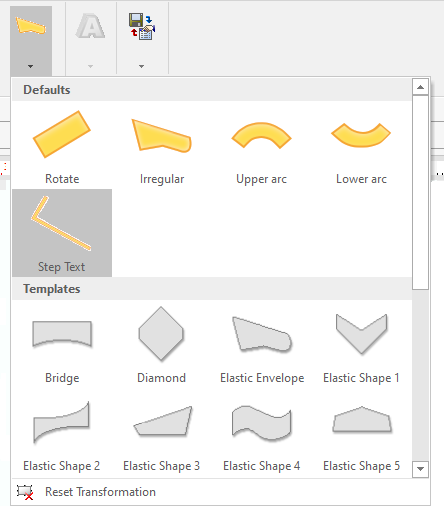

Select the Layout to use (line, arc, bridge, etc). See details in "Lettering Layouts"

HF How to Start 8

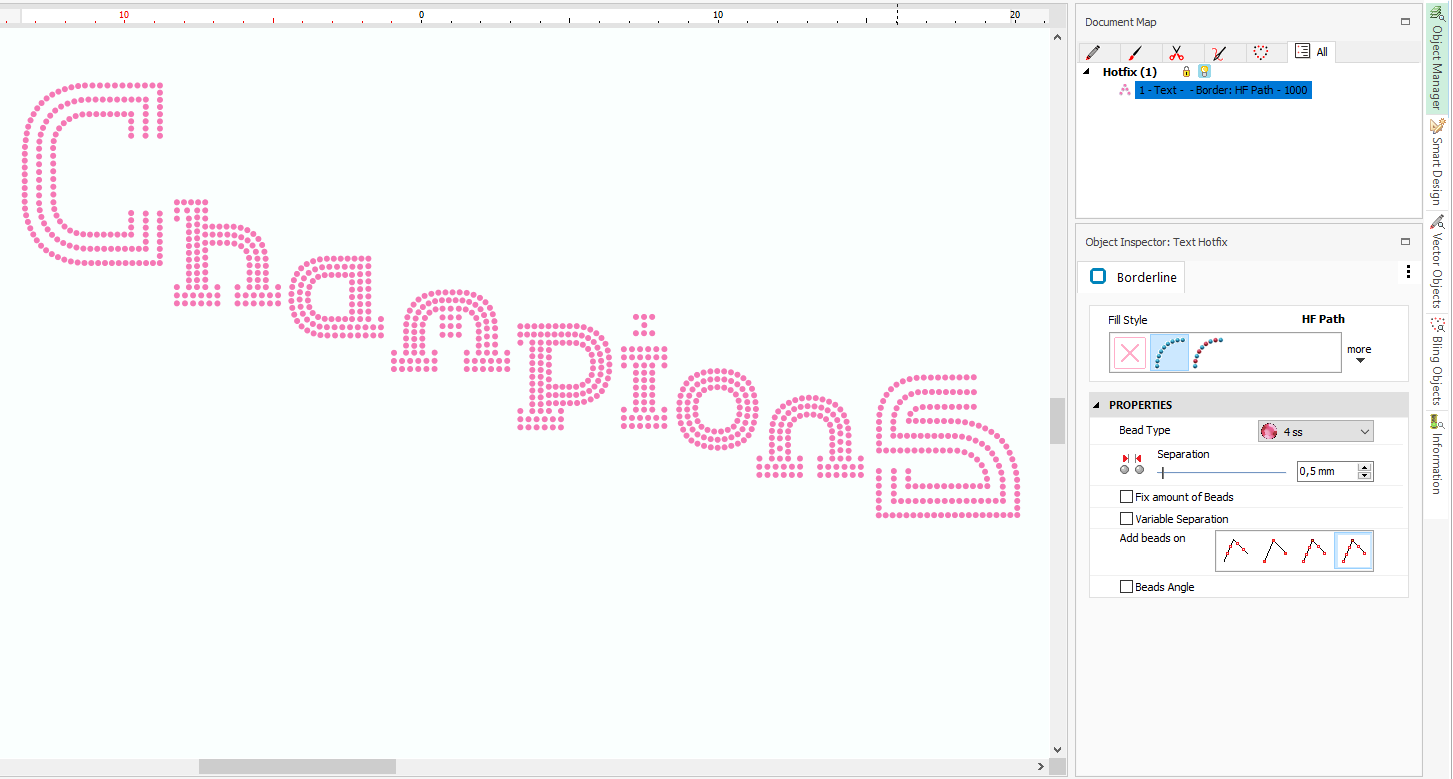

Adjust the layout in the workspace.

Move the grips of the text layout to adjust the shape according to the requirements.

HF How to Start 9

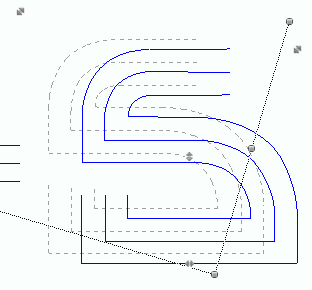

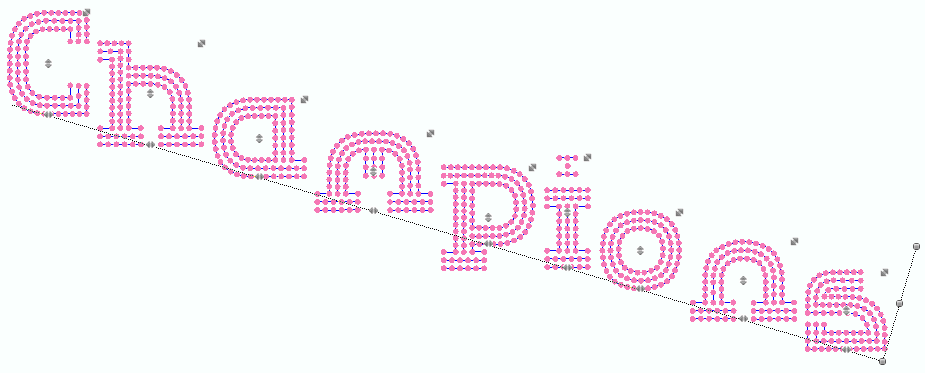

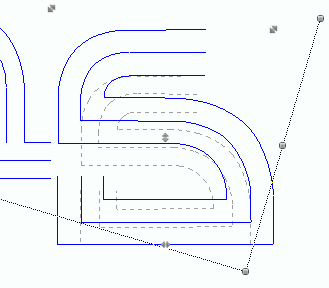

If required, you can change the size of each letter individually, and also change the letter position individually (horizontal, vertical).

HF How to Start 12   HF How to Start 13



9.Confirm and edit the text object if necessary



HF How to Start 14



You can then re-define any of the above properties, if required.
