The Document Map is a panel that includes a list of all the objects of any kind contained in the design. The objects are listed in the same sequence as they were defined in the design.

Not only the Document Map is a static list of objects, but there are many available functions that you can execute by using the Document map.

You can open the Document map by clicking on the "Object Manager" tab on the right side of the screen.

The Document Map is synchronized with the active design, that is, any change made in the Document Map will be reflected in the design of the Workspace, and any change made in the design of the Workspace will be reflected in the Document Map.

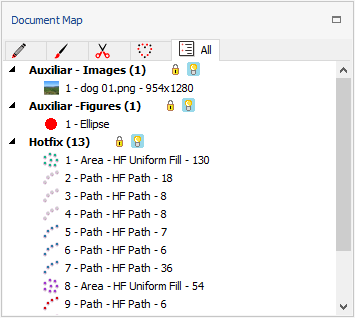

Filter by decoration type

➢You can select the type of decoration you want to see on the list through the tabs

By default, the tab "All" shows all the decoration types in the same list (images, vectors, bling objects, etc.)

Block/Hide objects

The functions of the icons at the right of each object type are:

•The padlock icon allows to lock/unlock the selected object type.

•The bulb icon allows to hide/show the selected object type.

➢Press the right mouse button on the Document Map header to access visualization options, such as:

•Small caption / Large Caption: Allows to control how many information is displayed for each element.

•Collapse all / Expand all: Collapses or expands the entire tree.

Select object or objects

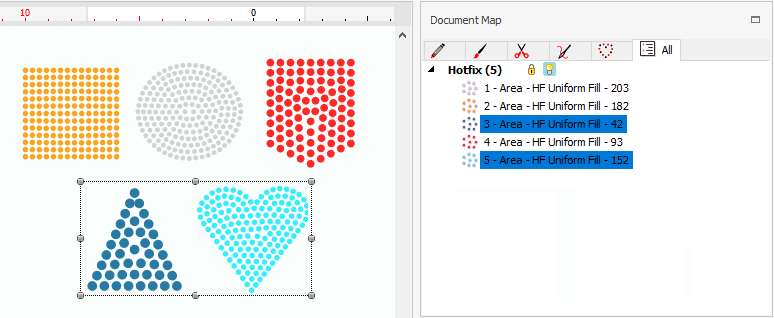

➢Just click on the object to select it. The selected object will be also highlighted on the Workspace.

➢If you want to select more objects, click each additional object while pressing the Ctrl key.

Delete selected object or objects

➢Select an object or several objects

➢Press the Del (delete) key.

Change the objects sequence

You can use the Document Map to edit the object sequence.

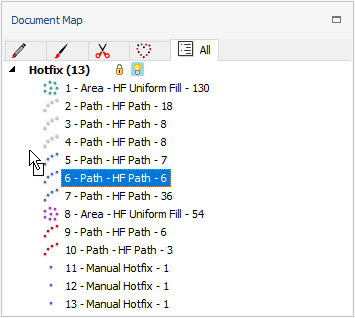

➢Press and hold the left mouse button to drag any section within the Document Map.

➢The horizontal blue line showing indicates the position within the sequence where the object being dragged will be placed if you release the mouse button.
