Color Photo Effect

<< Click to Display Table of Contents >>

Navigation:  Bling on the Embroidery Software > Bling Effects >

Color Photo Effect

This effect changes the beads of an object according to the colors of an image located in the background.

Color 7



Sample video including Photo Color and Color Random Effect

https://www.youtube.com/watch?v=nqdqTRQWtkE



How to apply this effect on a bling object?

Load an image on the workspace.


Color 2

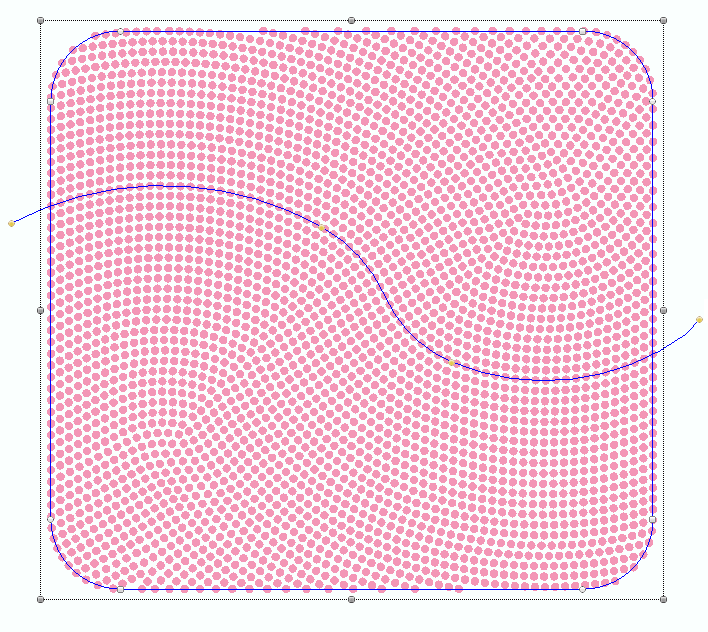

Create any bling object.

For this example:

Use an Area with Flexible Bling Fill.

Digitize a Round Rectangle (available Shapes)

Add a curve Direction Line.


Color 3

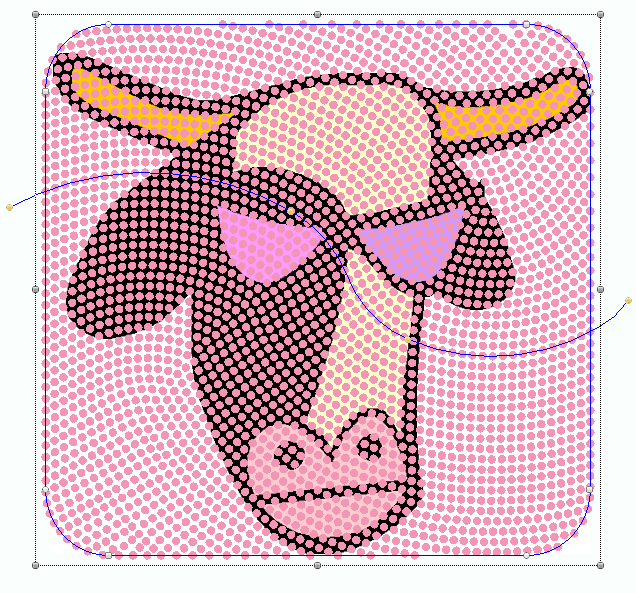

Place the bling object over the image.


Color 4

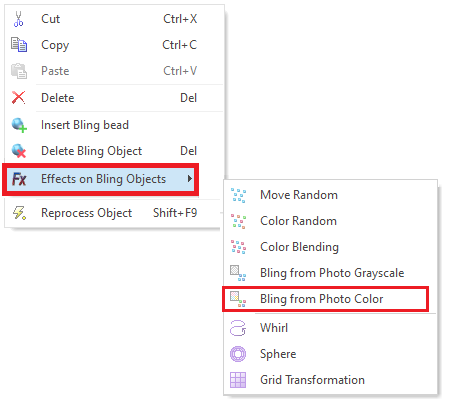

Open the Context Menu

Click on "Effects on Bling Objects"

Click on "Bling from Photo Color".


Color_5

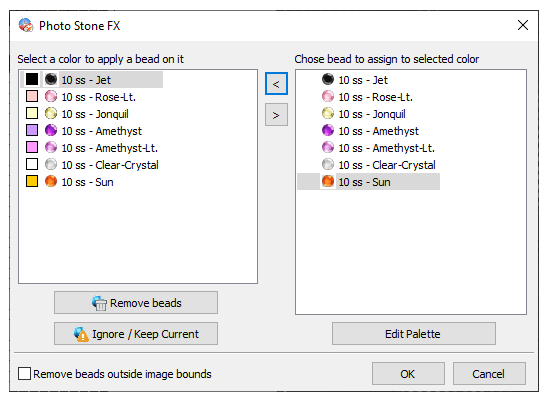

The Photo Stone FX box opens.

The left pane shows all the image colors. The right pane shows the bling types of the Bling Palette.

You must assign a bling type to each color.

Select one of the image colors on the left pane.

Select the bling type for that color on the right pane.

Press the [<] button to assign types to colors.

Repeat this procedure for all the image colors

Press OK.


Color 1

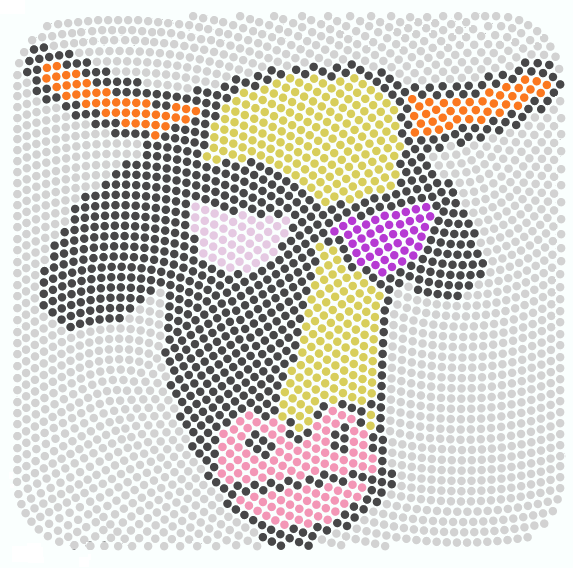

Result:

The positions of the beads didn't change, but the bling types have been replaced according to specifications.


Color 7



This feature is included in the Bling Effect Pack
